【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------

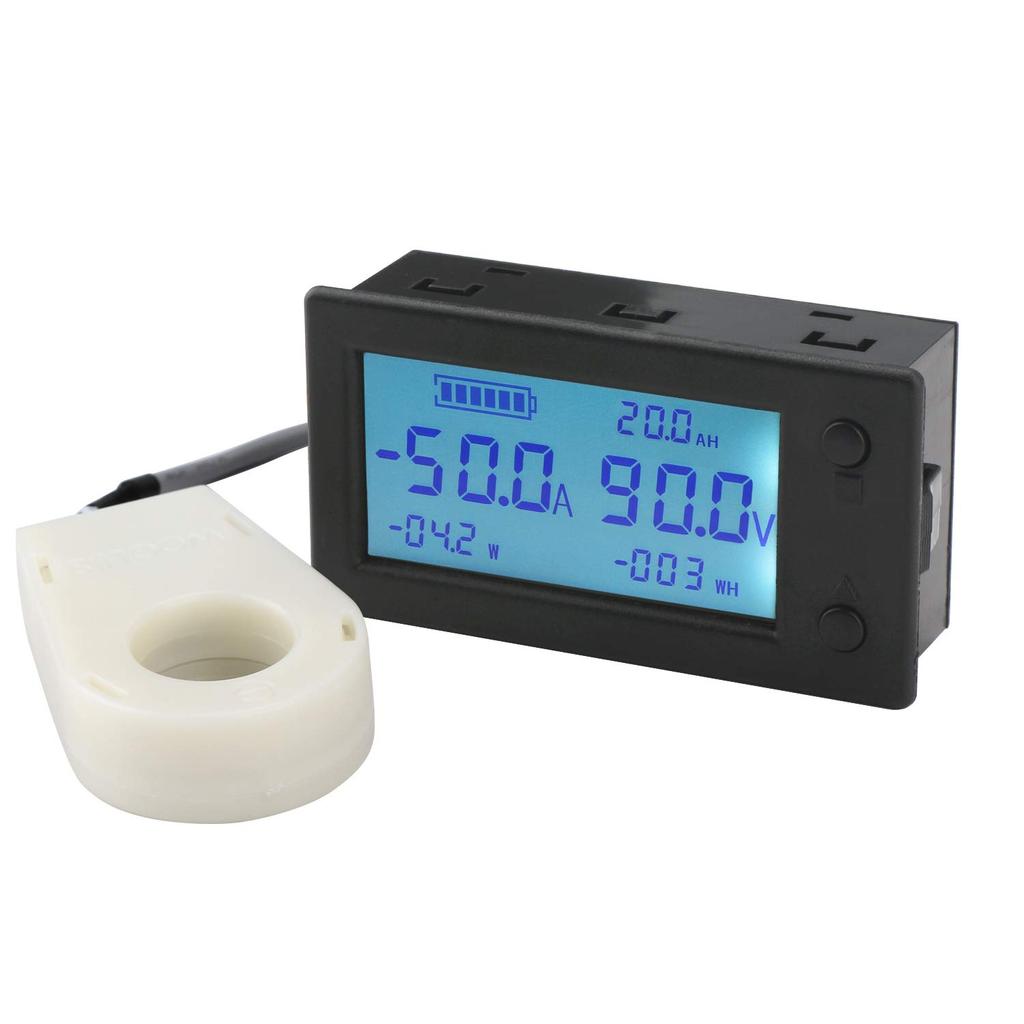

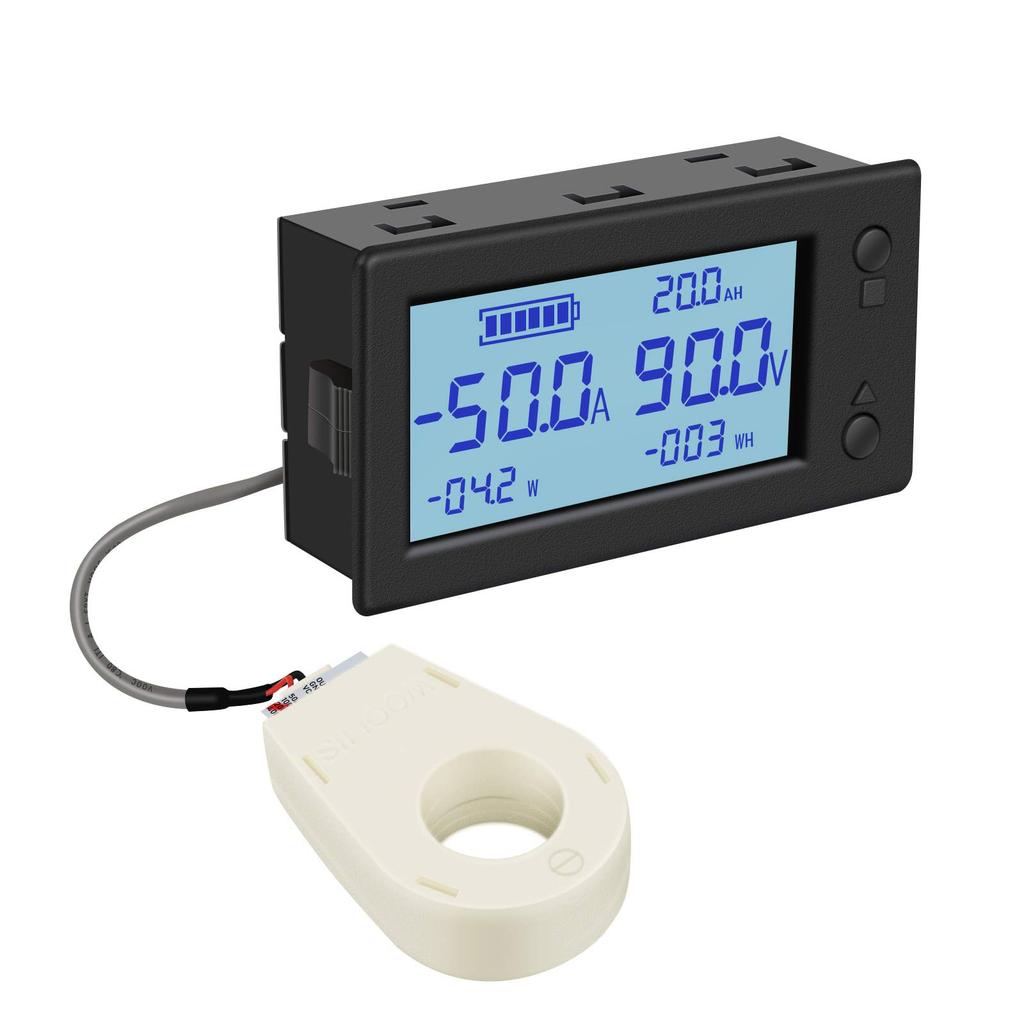

Multi-function Meter: DROK multimeter panel can be used to measure remaining capacity percentage and AH, DC positive and negative bidirectional current, DC voltage, DC positive and negative power, and DC positive and negative bidirectional cumulative power. The voltage measurement range is DC 0-300V, and the current measurement range is 0-200A.

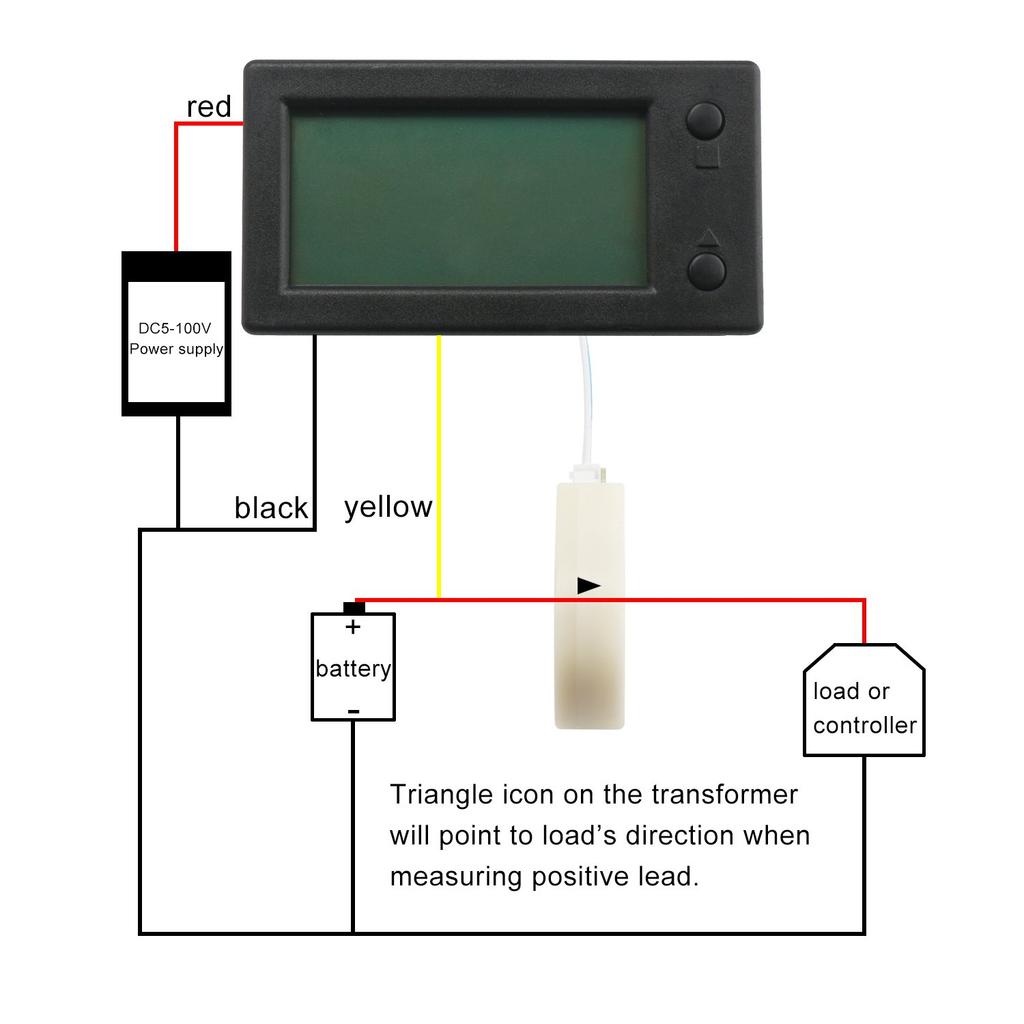

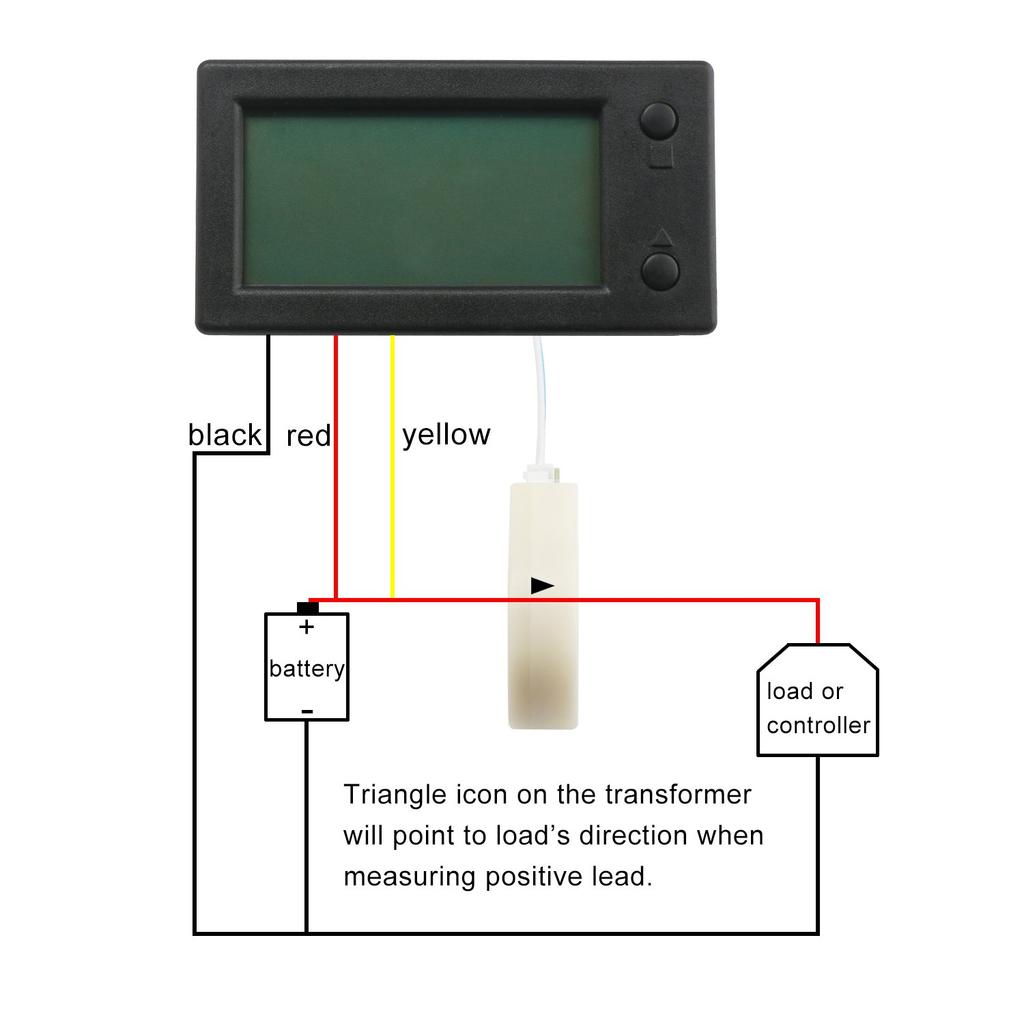

Hall Sensor & Easy Mounting: The voltage and amperage meter comes with a reliable and safe Hall transformer for isolated measurements. It can be powered by DC 5-90V, which is easy and simple to wire for both 2-wire and 3-wire systems.

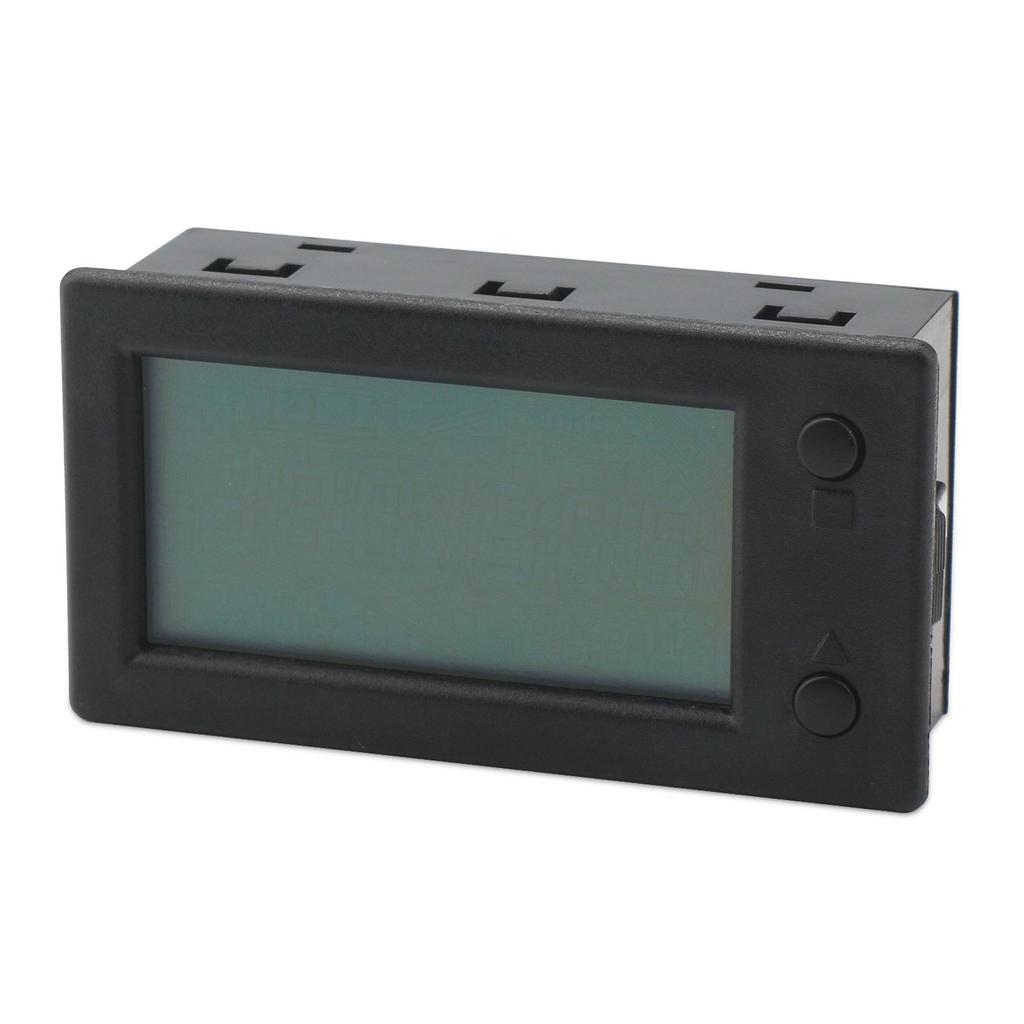

Display: The backlight can be controlled to be on or off. Equipped with a full-angle LCD screen, users can clearly see the display at any time, night or day, indoors or outdoors, even in sunlight.
Alarm function: It will flash to alarm when the actual voltage is higher or lower than the preset alarm voltage, and when the actual current is higher than the preset current. It will also flash to alarm to remind you to charge when the remaining battery power is low.
Wide range of applications: Suitable for all types of batteries, including lead-acid batteries, lithium polymer batteries, and lithium iron phosphate batteries. Data can be stored even when the power is off.
Technical parameters:

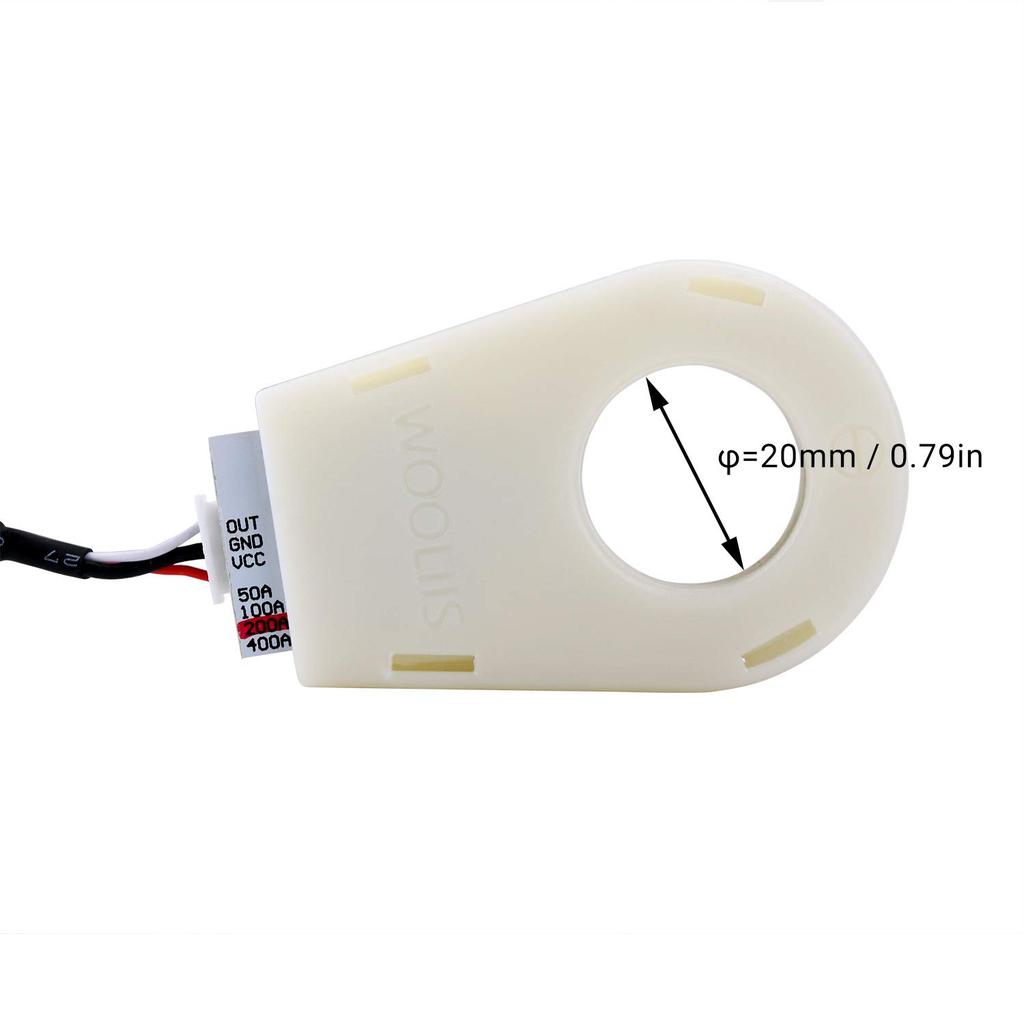

Model: WLS-PVA200 Current Measurement Range: 200A Current Resolution: 0.1A Power Range: DC5-90V Voltage Measurement Range: DC0-300V Voltage Resolution: 0.1V Capacity Measurement Range: 0-999AH Power Measurement Range: 0-999KW Electrical Energy Measurement Range: 0-999KWH Measurement Error: ±1% Refresh Speed: 0.5S/time Installation Size: 76.0mm x 39.5mm Transformer Diameter: Φ20mm Operating Current: Backlight On: 10MA, Backlight Off: 4MA
Package includes: 1 x LCD Digital Curren Meter
