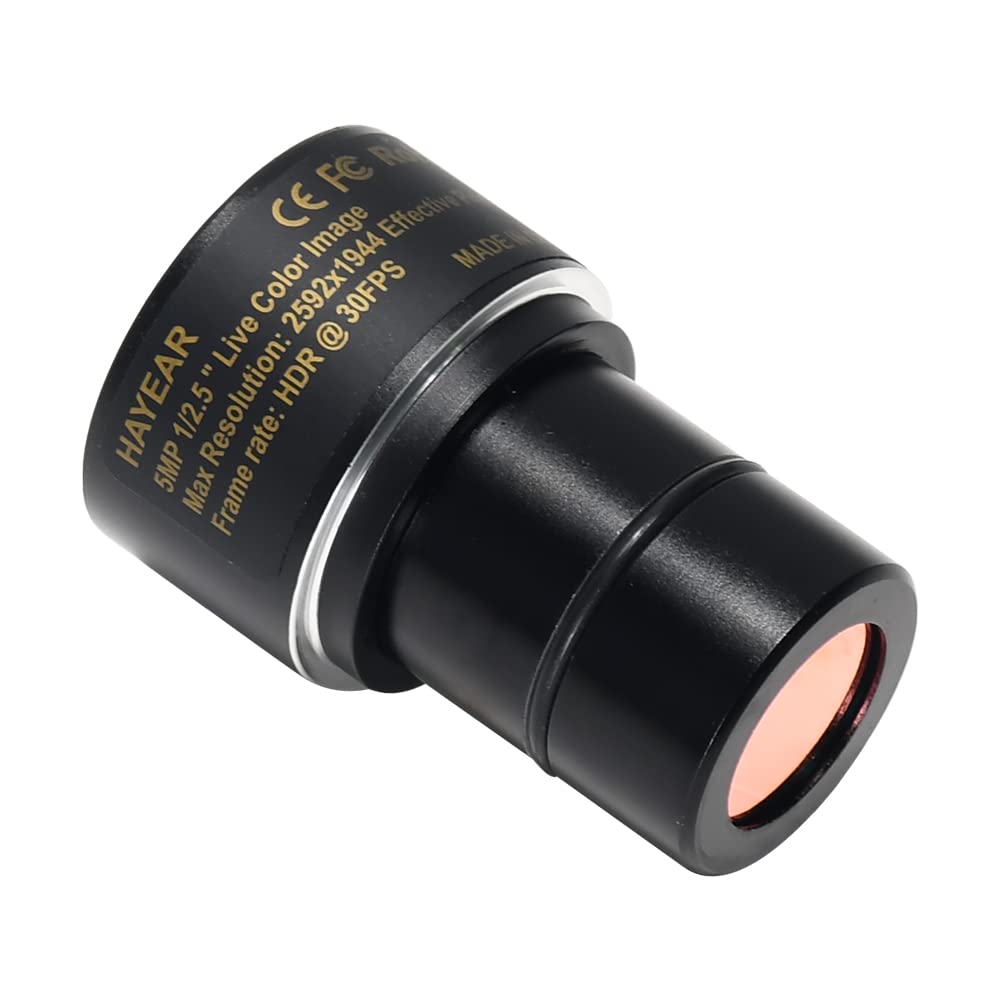

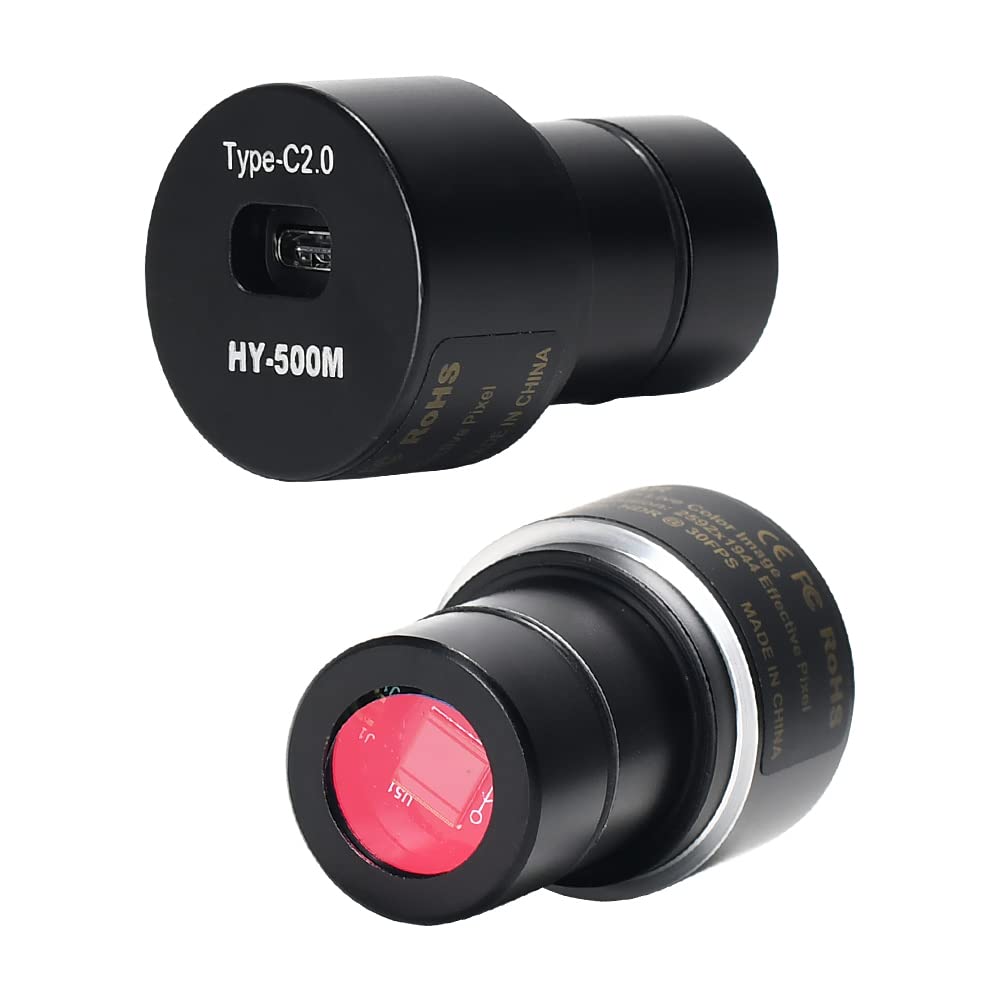

Upgrade your biological or stereo microscope with this digital eyepiece
This 5MP camera is created as a microscope upgrade and is suitable for student study, teaching, etc.

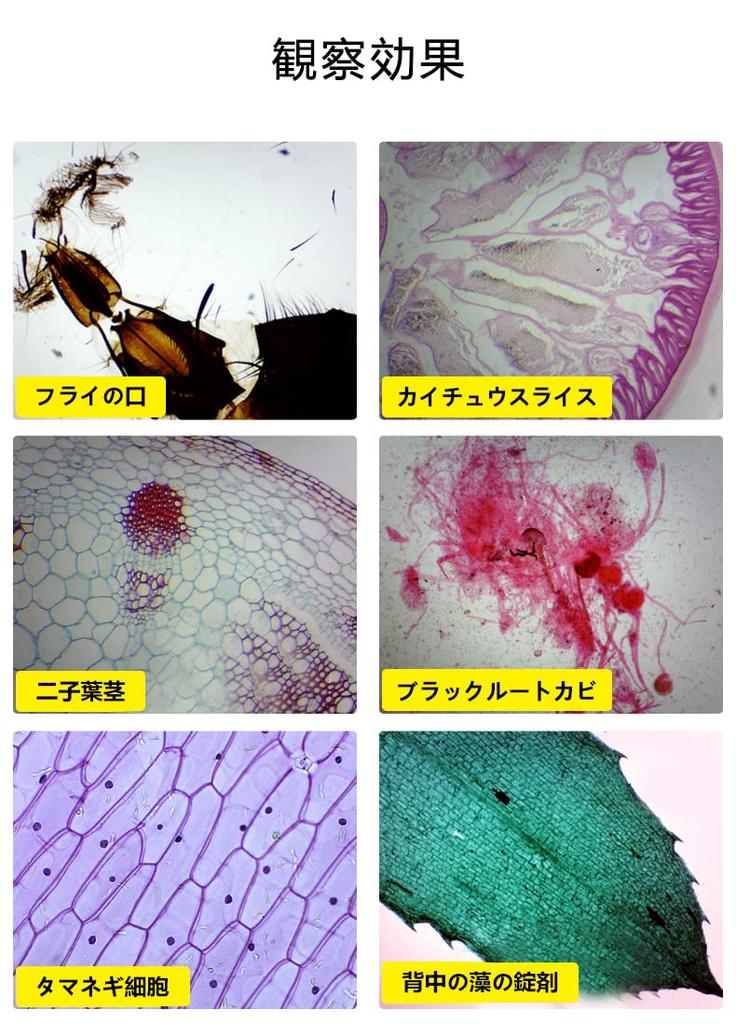

Can capture still images
Create color images to save and share

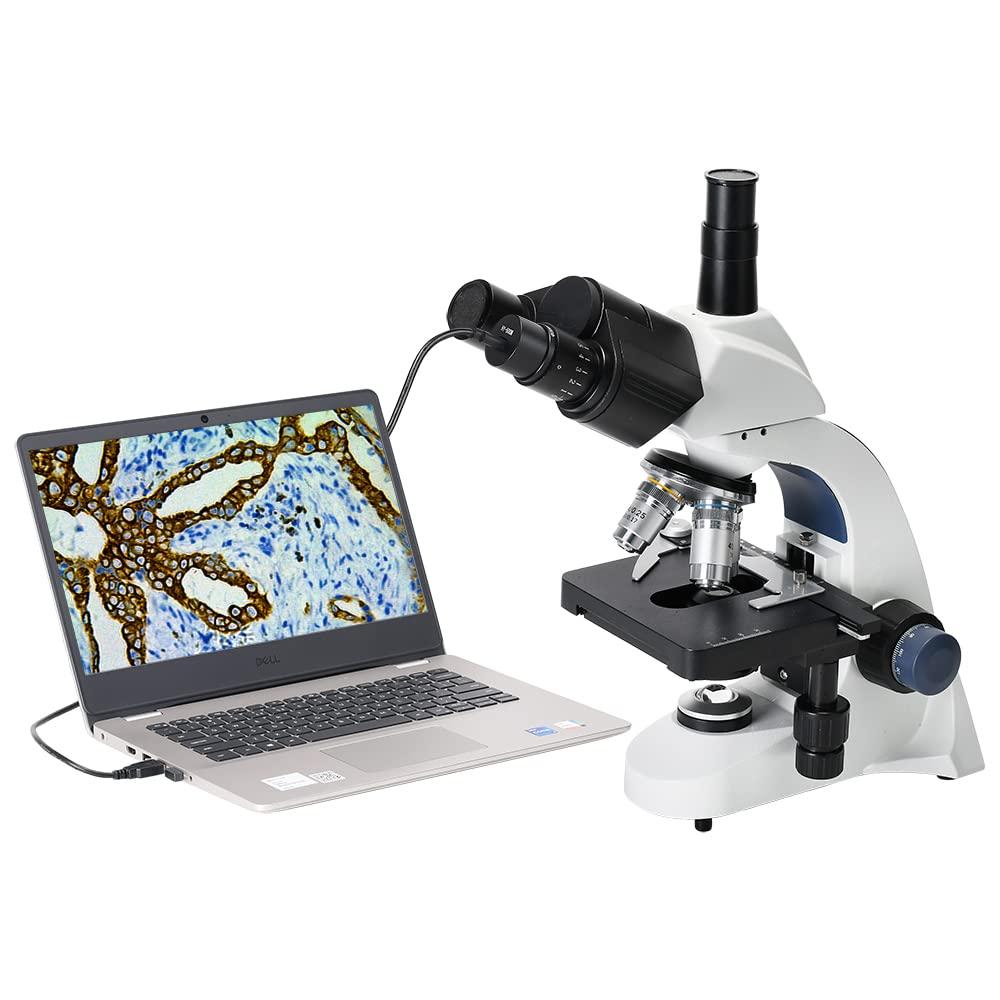

Enables real-time enlarged video of specimens for presentations
[Quality Assurance] We strive to improve quality. In the unlikely event that there is a problem with the product, please contact us and we will promptly respond. We will respond to returns and refunds as soon as possible.
[Maintenance Instructions] The camera has a 1-year free warranty, but if it is obviously man-made, it is not guaranteed here. Always free technical support.
For contact information, please click on the vendor "HAYEAR" in the right column and send us an email.
specification
Product number: HY-500M
Diameter of eyepiece to be installed: 23.2mm
Resolution: 5MP
CMOS image sensor size: 1/2.5
Frame rate: 5MP: 2592x1944 HDR @ 30fps;3MP: 2084x1536 HDR @ 30fps;
2MP:1920x1080 HDR @ 30fps;2MP:1600x1200 HDR @ 30fps
Shutter: electronic shutter
Signal to noise ratio: 42.3dB
Pixel size: 2.2μmm × 2.2μm
Scan mode: Execute
White balance: automatic/manual
Working temperature: 0℃-50℃
Data interface: USB2.0 (480 Mbit/sec)
Spectral response: 400nm-1000nm
Responsiveness: 1.4V/lux-sec@550nm
Power supply: no external supply
Software functions: image display, image capture, video recording, measurement, etc.
Current: ≈200mA
Equipped with software: Compatible with Windows XP/7/8/10

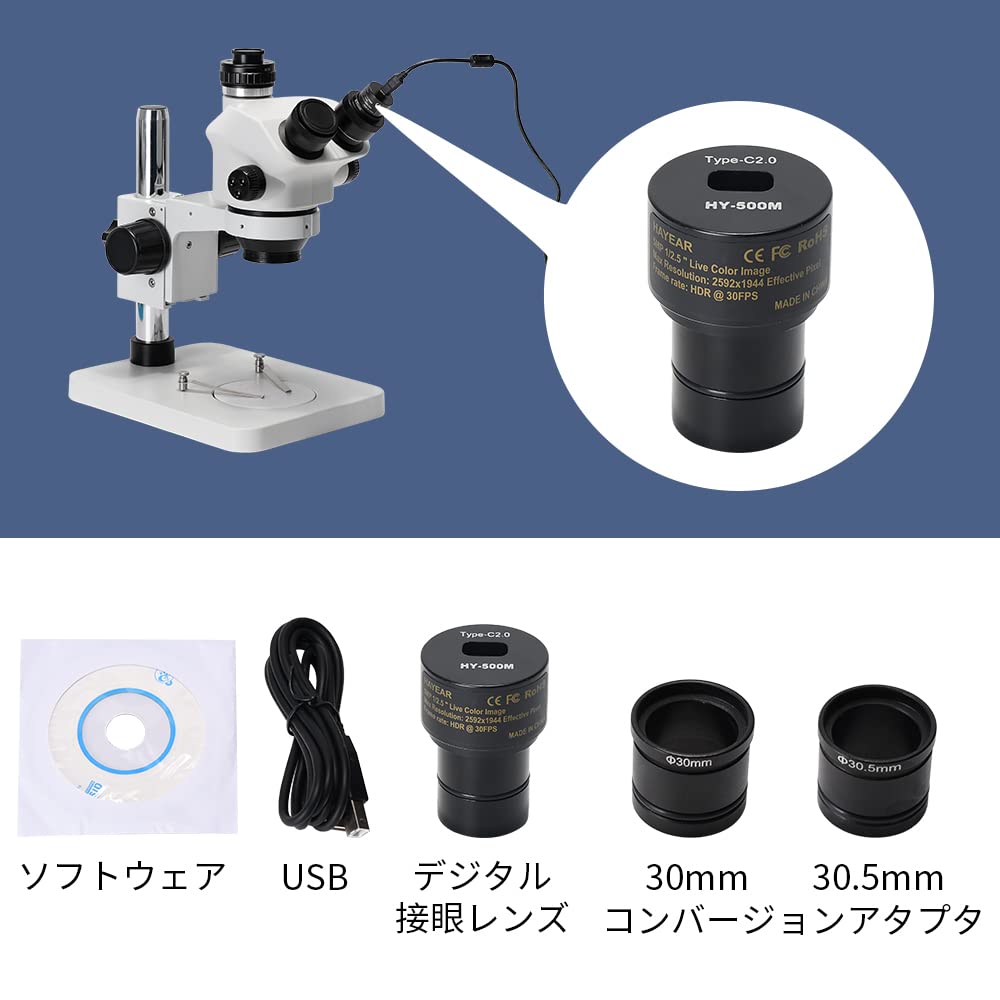

Packing list:
1X 5MP digital eyepiece camera
1X Type-C 2.0 cable
2X ring adapter
1X Software CD
