Feature:
1. [Voltage Identification] The solar controller can automatically identify the battery voltages of 12V 24V 36V 48VDC, using MPPT charging method, the efficiency is as high as 98.5percent .
2. [3 Stage Charging] Featuring constant current, constant voltage and floating 3 stage charging, more stable, prolong the service life of the battery.
3. [Wide Usage] This controller supports multiple types of batteries, meet the charging needs of various types of batteries of different customers.
4. [Intelligent Protection] The system is intelligently charged and discharged to avoid damage to the battery due to overcharge and overdischarge.
5. [Easy Operation] With a large display screen, intuitively display the working status, easy to operate, and the display in Chinese and English can be switched freely.
Specification:

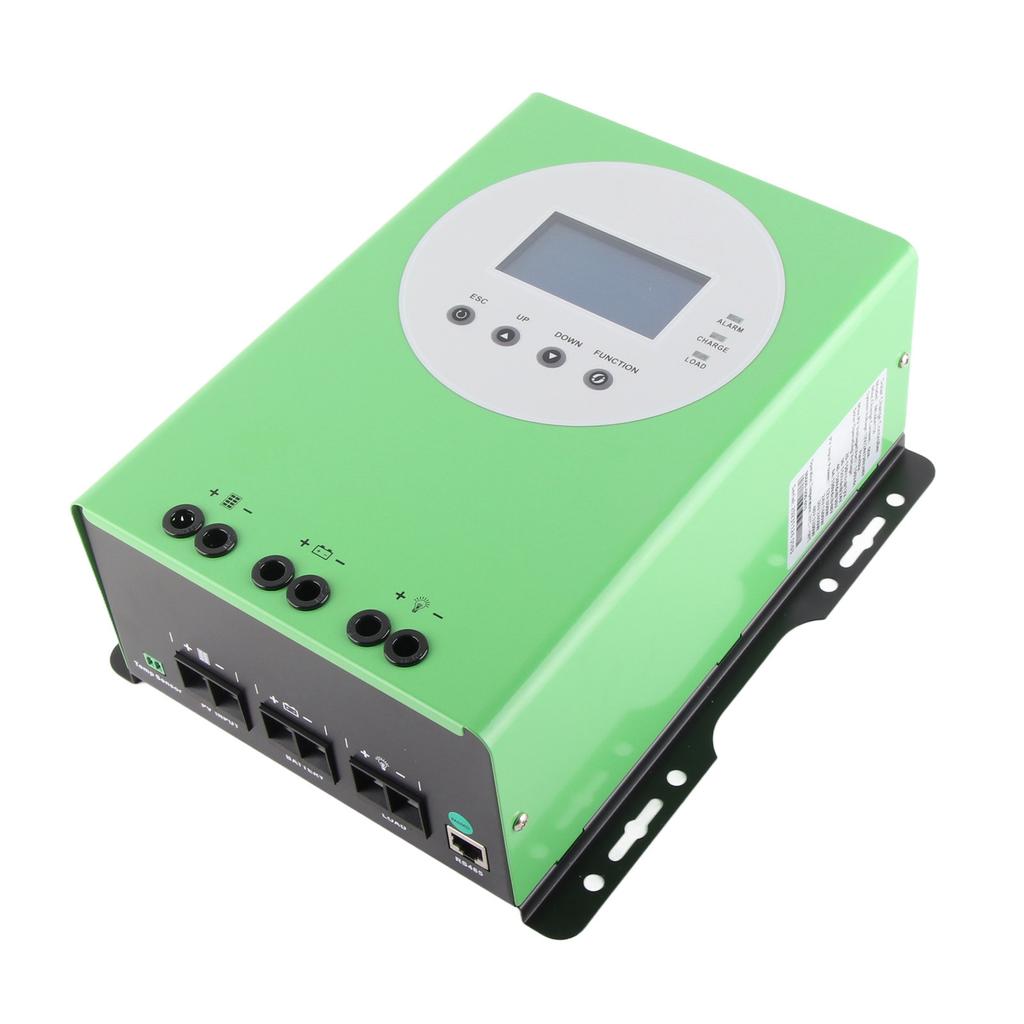

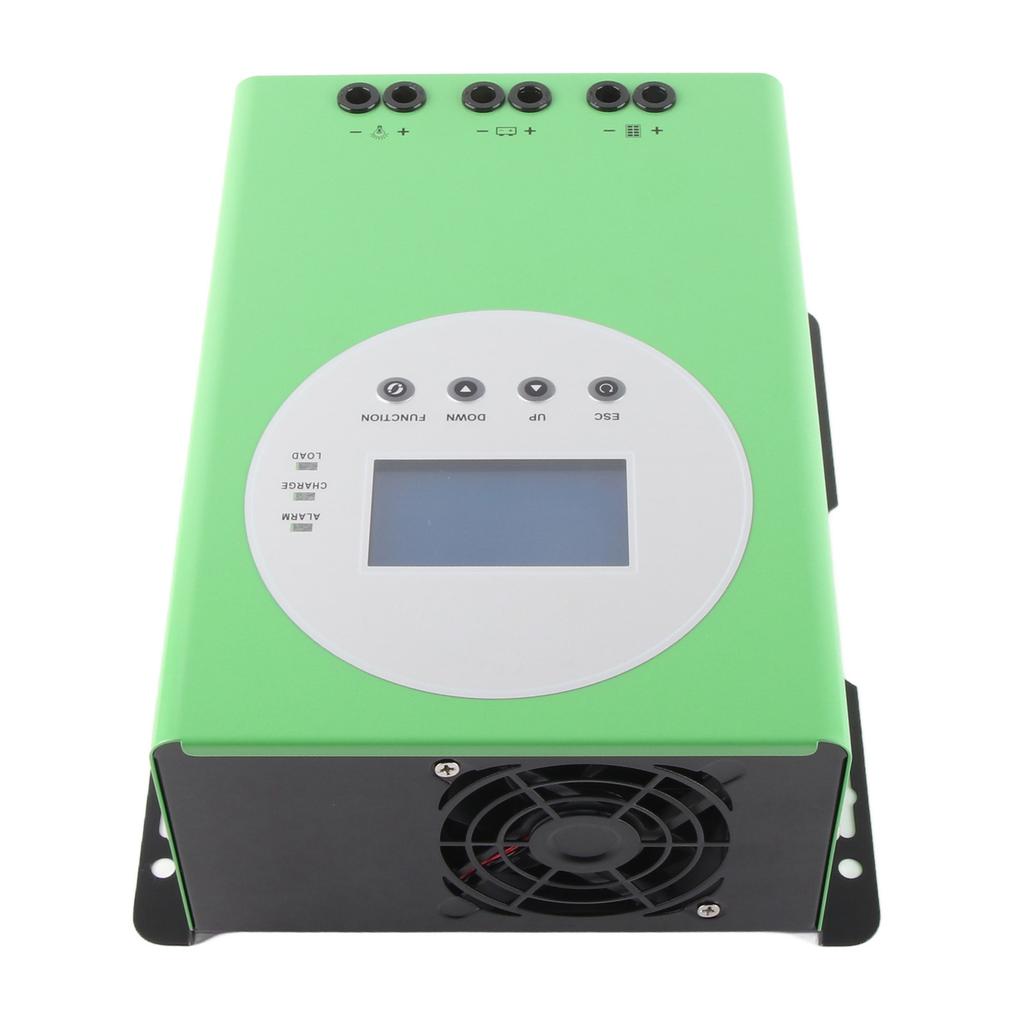

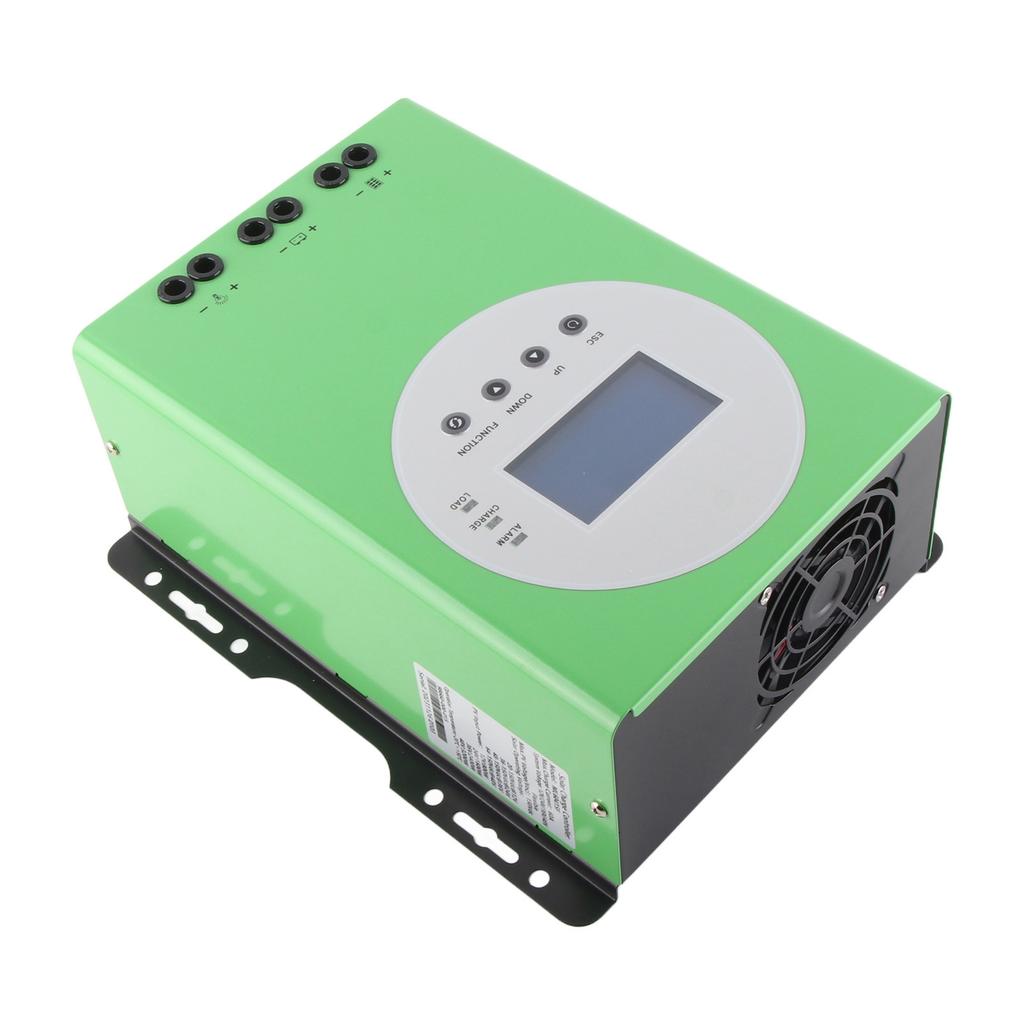

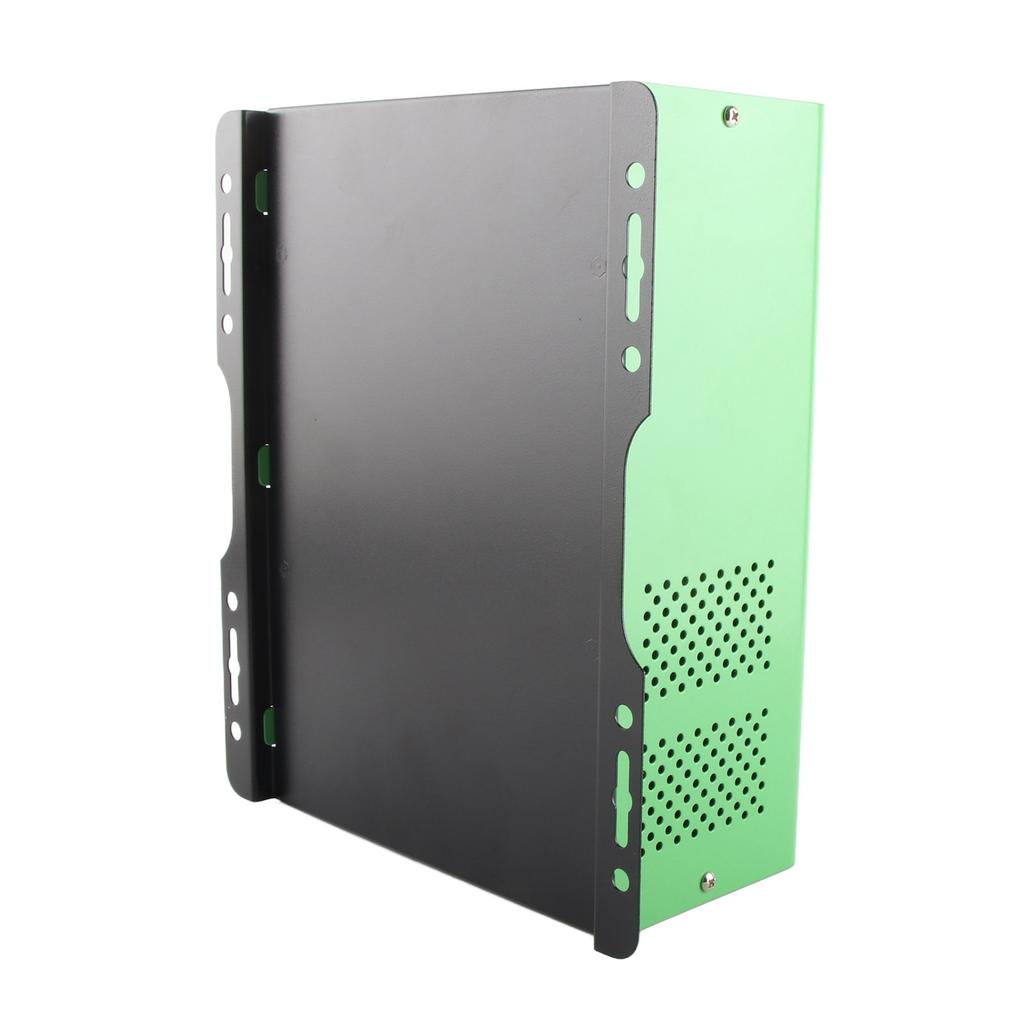

Item Type: MPPT Solar Charge Controller
Material: Aluminum Alloy, ABS
System Voltage (Battery Interface Voltage): 12V 24V 36V 48VDC (automatic identification)
Rated Current: 60A
Rated Charging Power: 800W 12V, 1600W 24V, 2400W 36V, 3200W 48V
PV Input Maximum Open Circuit Voltage: DC150V
Overall Efficiency: more than 98.5percent
Scope of Application: Sealed maintenance free acid battery (default), colloidal acid battery, open acid battery (you can also customize the setting parameters to charge other types of batteries)
Control Mode: Normally open normally closed mode, time control mode, light control mode
Cooling Method: Air cooling
Protection Functions: Input and output over voltage protection, input and output anti reverse connection protection, machine over temperature protection, load over current protection
Size: Approx. 219x260x110mm8.6x10.2x4.3in.
Package List:
1 x
MPPT Solar Charge Controller[Voltage Identification] The solar controller can automatically identify the battery voltages of 12V 24V 36V 48VDC, using MPPT charging method, the efficiency is as high as 98.5percent .
[3 Stage Charging] Featuring constant current, constant voltage and floating 3 stage charging, more stable, prolong the service life of the battery.
[Wide Usage] This controller supports multiple types of batteries, meet the charging needs of various types of batteries of different customers.
[Intelligent Protection] The system is intelligently charged and discharged to avoid damage to the battery due to overcharge and overdischarge.
[Easy Operation] With a large display screen, intuitively display the working status, easy to operate, and the display in Chinese and English can be switched freely.
