Feature:
1. INTUITIVE LCD DISPLAY: The solar controller is equipped with a large LCD display to display the status of the battery and solar panels, mode control, load output status and various parameter information in real time. This visual interface ensures easy management
2. EFFICIENT CHARGING: Solar charging controller uses an automatic maximum power point tracking (MPPT) charging mechanism to ensure optimal charging efficiency. This maximizes the conversion of power from the solar panel to the battery system
3. HIGH ENERGY UTILIZATION: The solar panel charging controller can quickly tracking the maximum power point of the photovoltaic array in any environment, ensuring that the tracking efficiency is not less than 98percent . This greatly improves the energy efficiency of the solar system
4. COMPREHENSIVE PROTECTING: The MPPT solar controller provides comprehensive voltage protecting, including battery overvoltage, overcurrent, outage, overcharge, deep discharge, reverse connection and overheat protecting
5. DISPLAY PARAMETERS: Solar panel charging controller regulator displays controller parameters such as working mode, battery voltage, photovoltaic charging current, battery discharge current, product operating temperature and delay time
6. APPLICABLE MODEL: MPPT solar charging controller built in insurance and protective device to protect the system stable operating, stable output power. Support a variety of battery charging options, compatible with various types of batteries, including GEL, SLA, LFP, LI, USE
Specification:

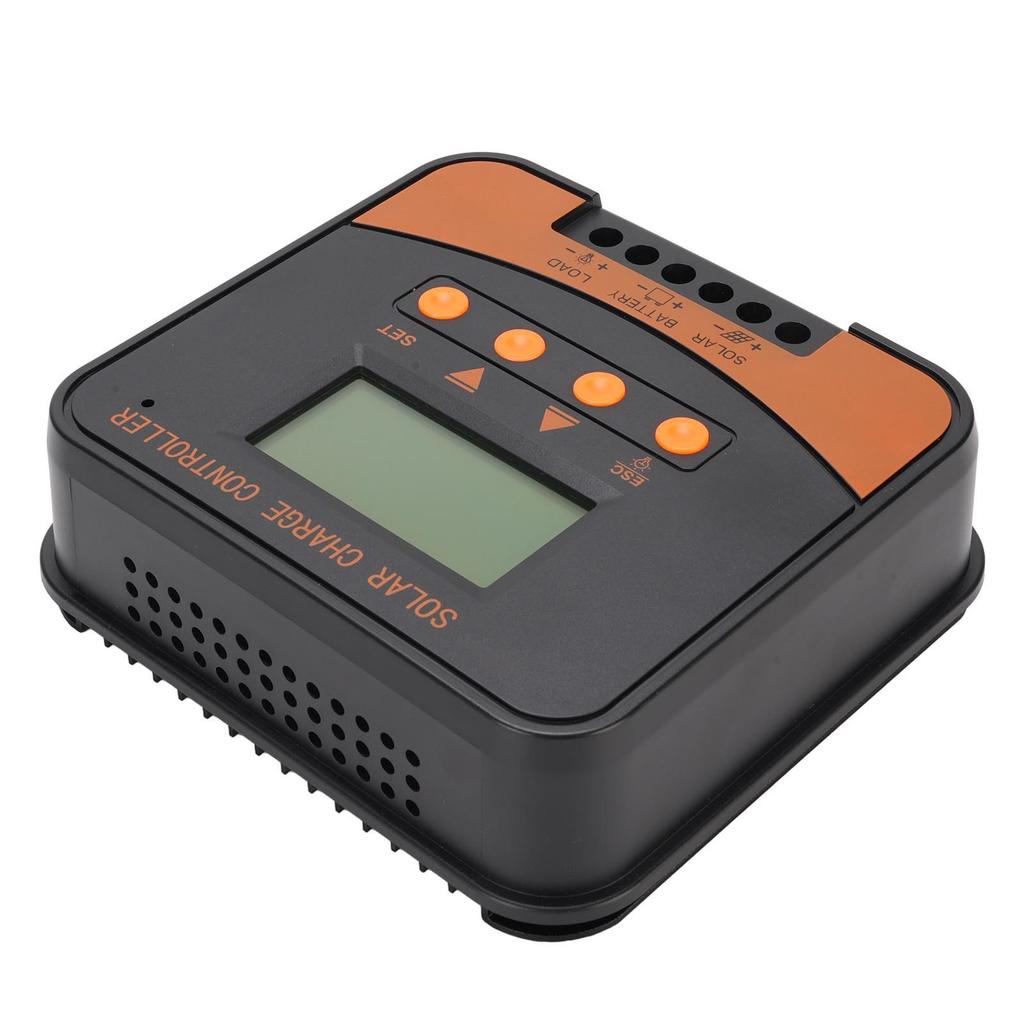

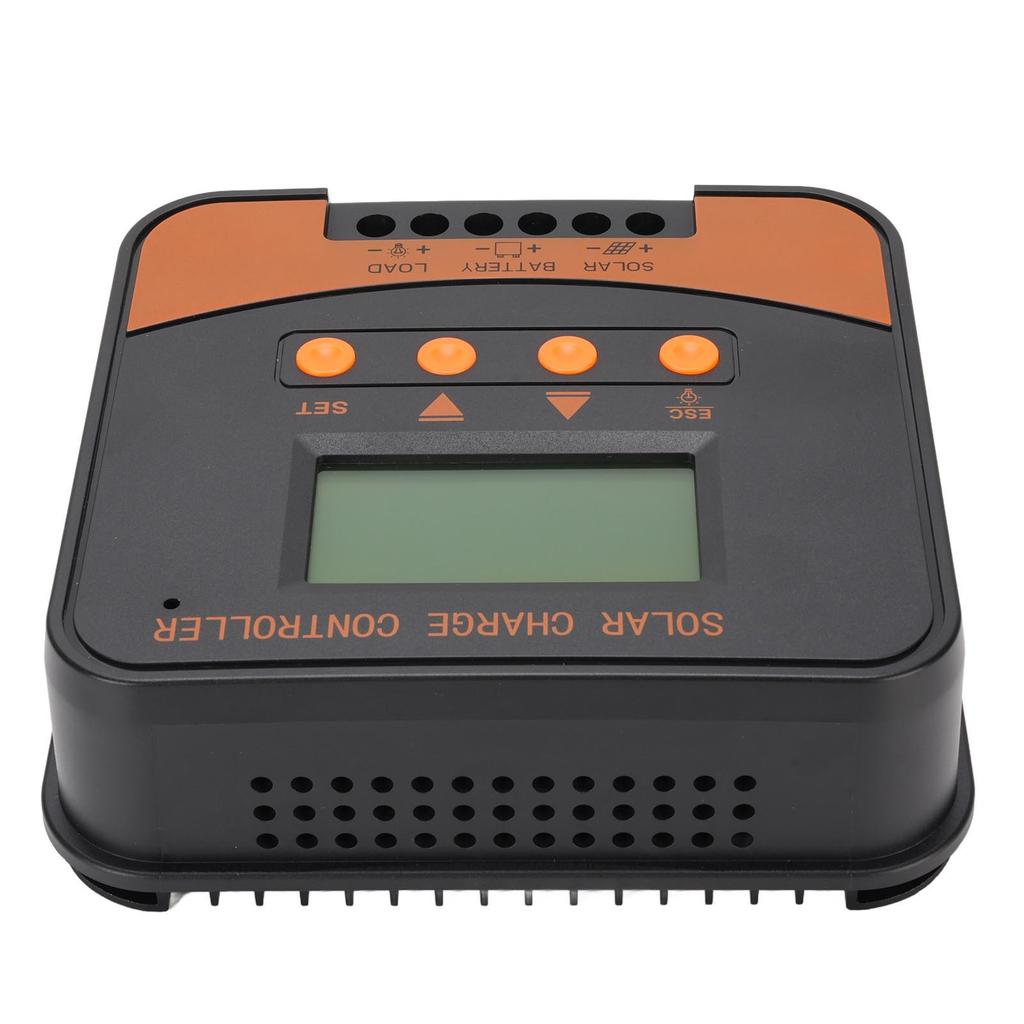

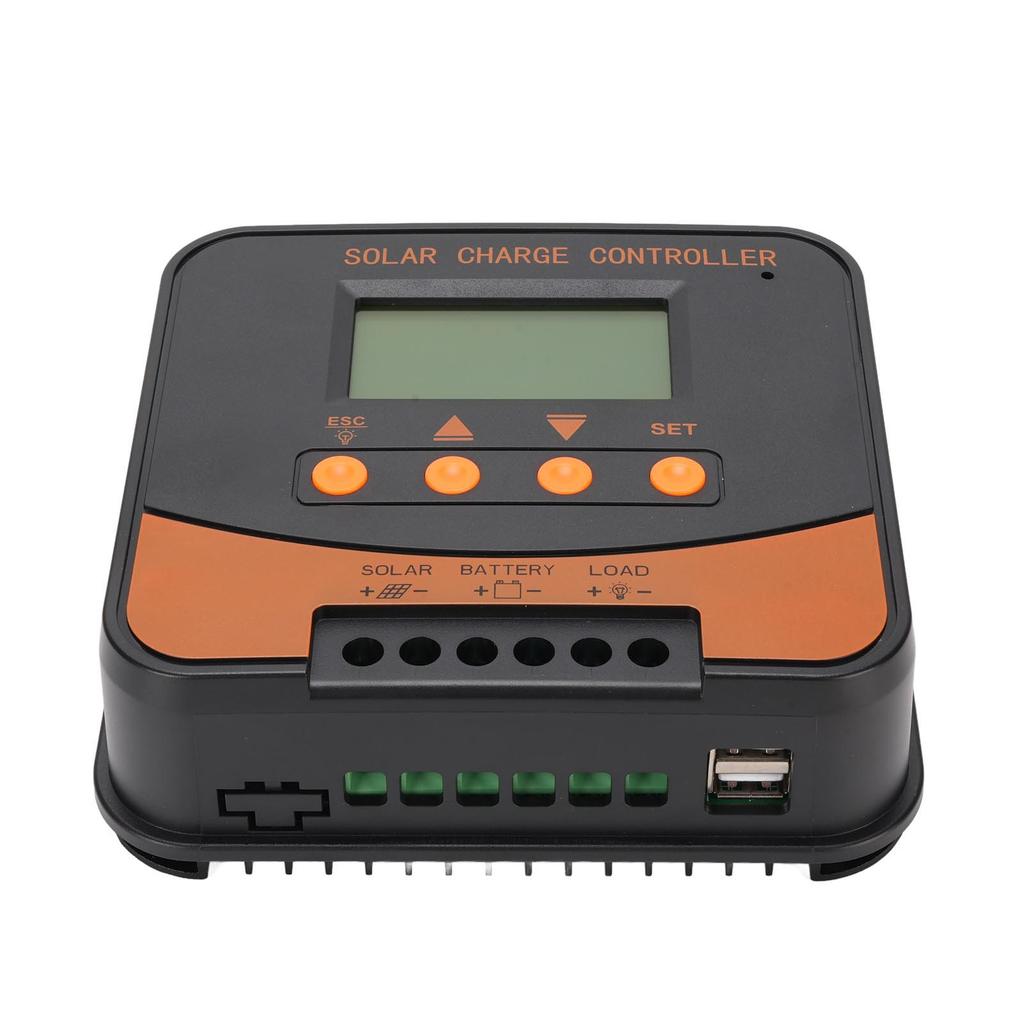

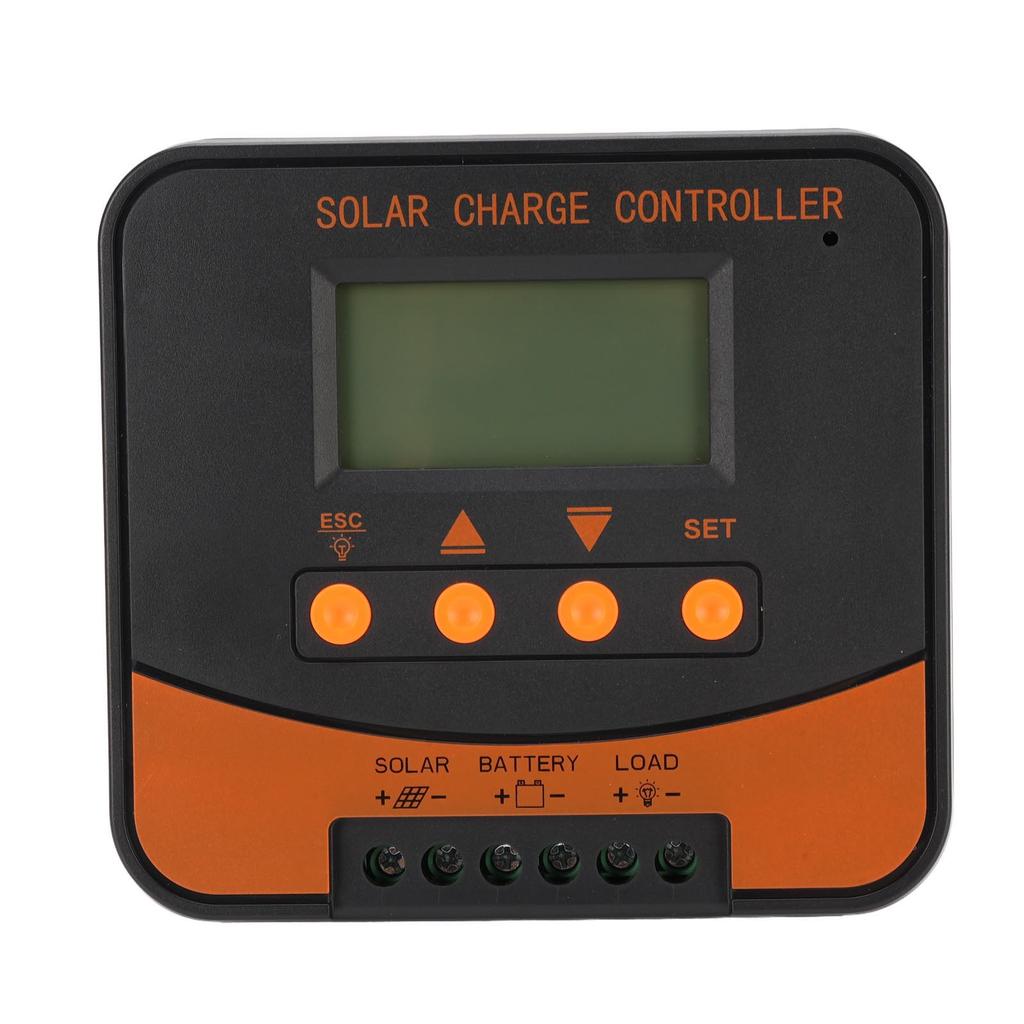

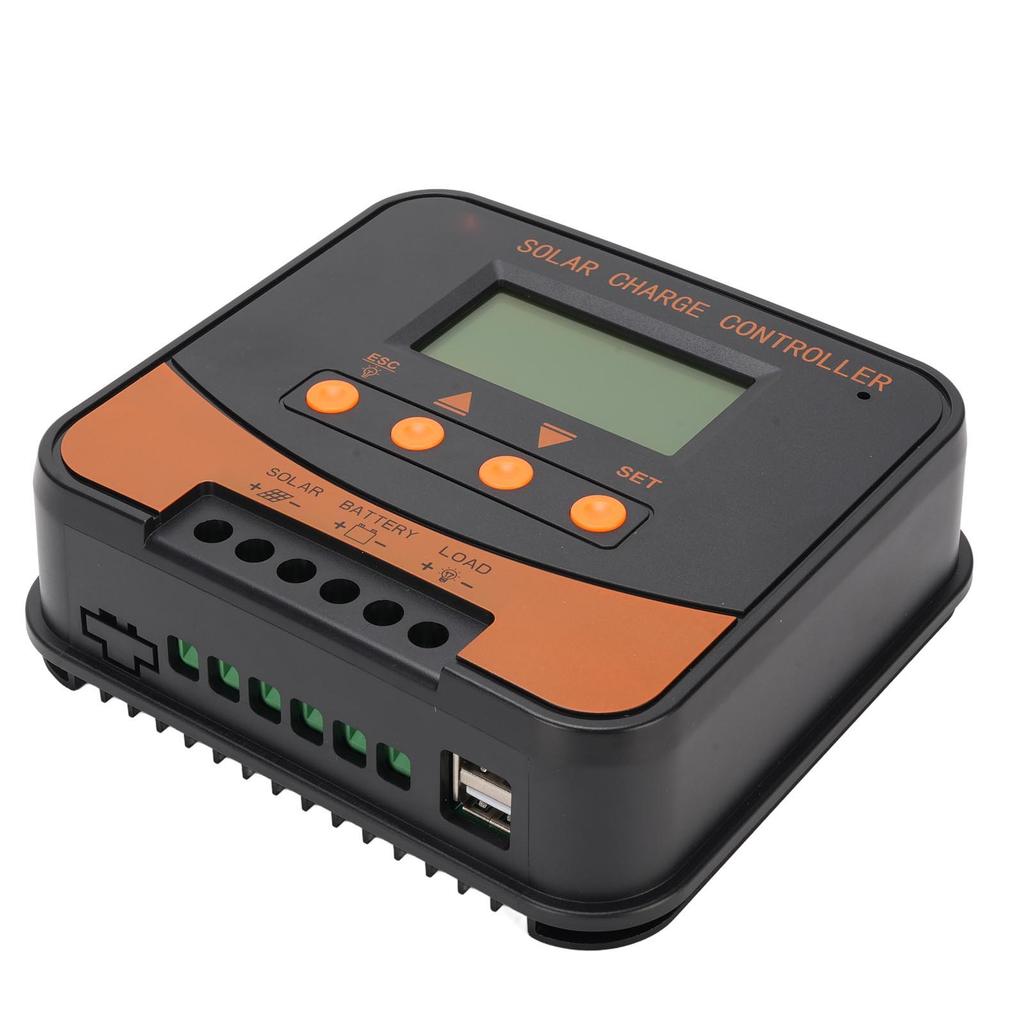

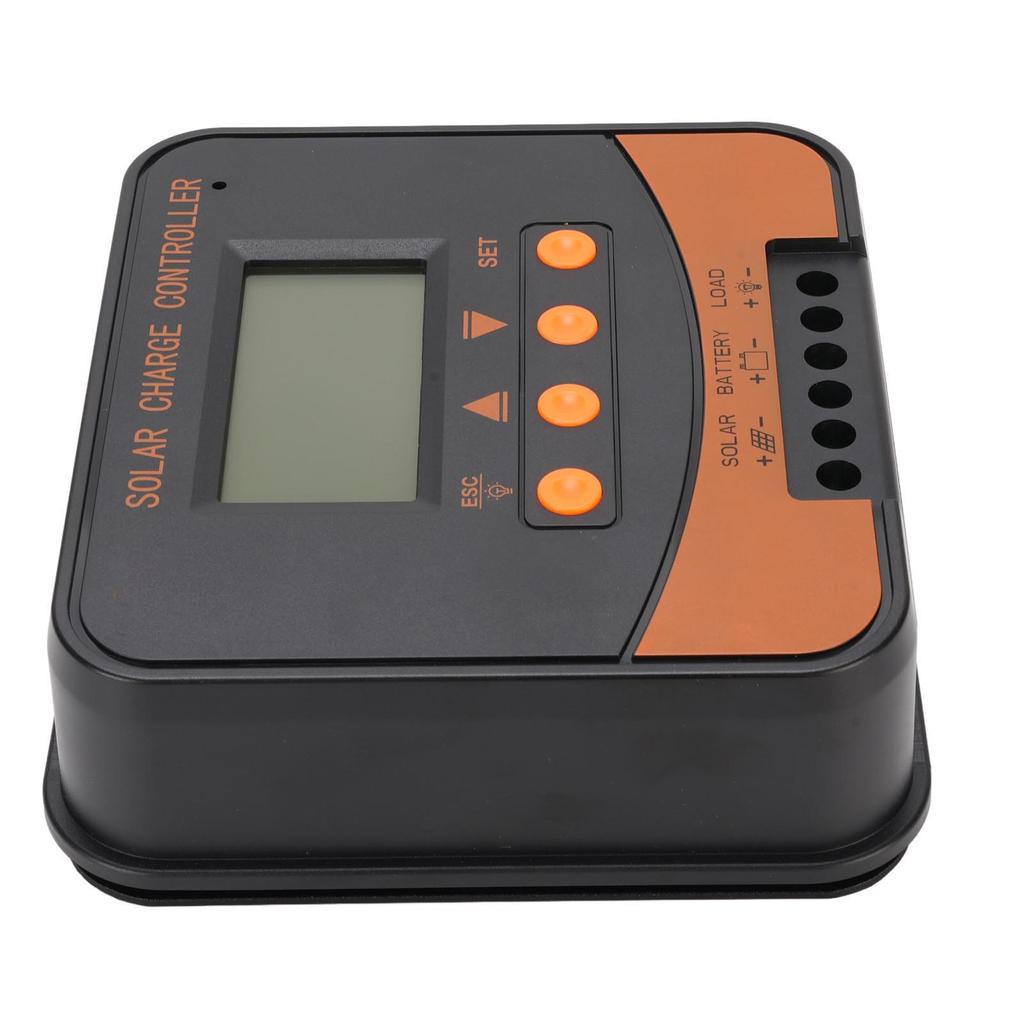

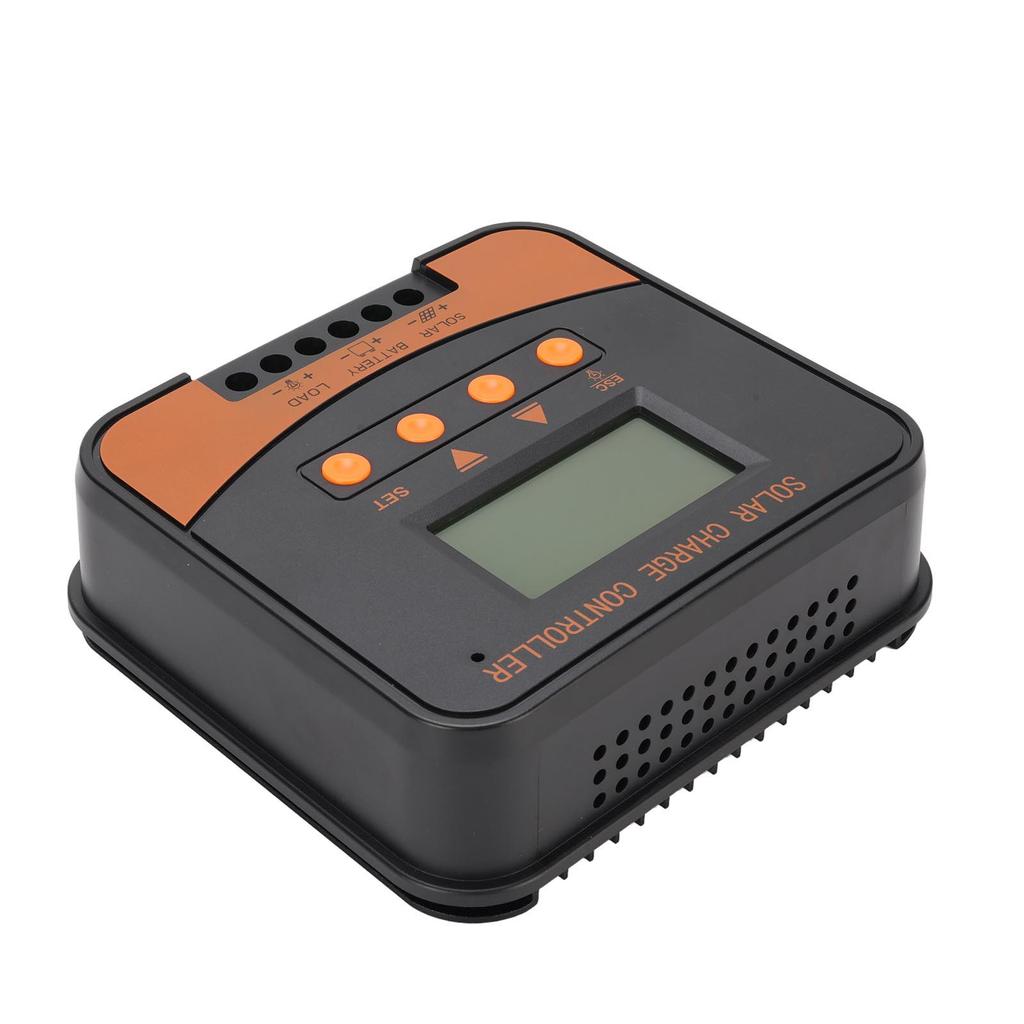

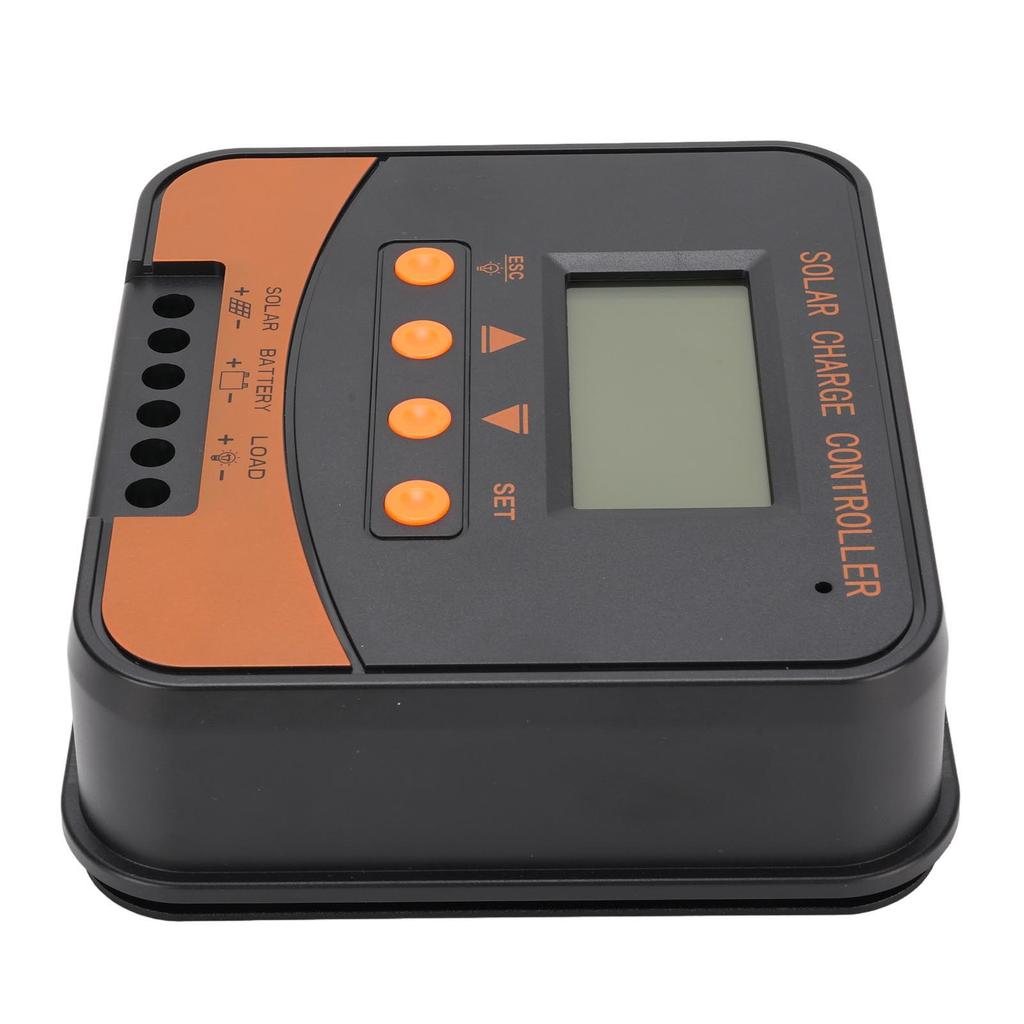

Item Type: MPPT Solar Charging Controller
Model: DYMCS20
System Voltage: 12V 24V automatically
No Load Loss: less than 0.04A
Maximum Input Voltage of Solar Panel: 50V
Maximum Charging Current: 20A
Maximum Load Current: 20A
Maximum Input Power of Solar Panel: 240W 12V, 480W 24V
MPPT Tracking Efficiency: less than 99percent
Temperature Compensation: 2mV celsius 2V(battery)
Operating Temperature: 10 celsius ~+65 celsius .
Package List:
1 x MPPT Solar Charging Controller
1 x User ManualINTUITIVE LCD DISPLAY: The solar controller is equipped with a large LCD display to display the status of the battery and solar panels, mode control, load output status and various parameter information in real time. This visual interface ensures easy ma
EFFICIENT CHARGING: Solar charging controller uses an automatic maximum power point tracking (MPPT) charging mechanism to ensure optimal charging efficiency. This maximizes the conversion of power from the solar panel to the battery system
HIGH ENERGY UTILIZATION: The solar panel charging controller can quickly tracking the maximum power point of the photovoltaic array in any environment, ensuring that the tracking efficiency is not less than 98percent . This greatly improves the energy efficienc
COMPREHENSIVE PROTECTING: The MPPT solar controller provides comprehensive voltage protecting, including battery overvoltage, overcurrent, outage, overcharge, deep discharge, reverse connection and overheat protecting
DISPLAY PARAMETERS: Solar panel charging controller regulator displays controller parameters such as working mode, battery voltage, photovoltaic charging current, battery discharge current, product operating temperature and delay time
