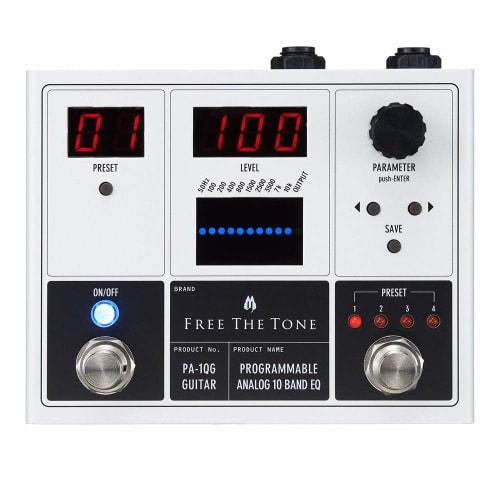

FREE THE TONE PA-1QG Graphic Equalizer for Guitar

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

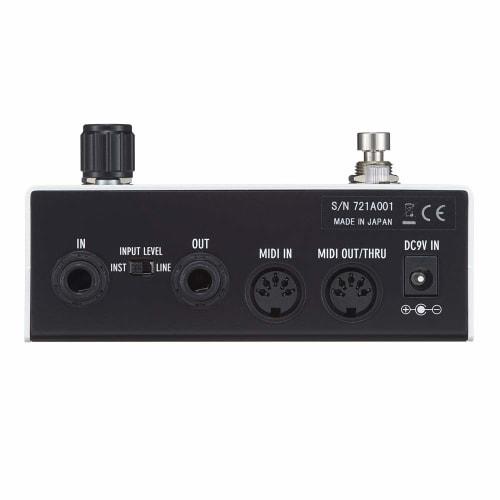

1. KEY FEATURES: - Number of presets: 99 Input impedance: INST 1MΩ or more/LINE 300kΩ or more - Output load impedance: 10kΩ or more Maximum input level: INST +4dBm/LINE +14dBm (EQ setting = flat) - Controls: Cursor keys, PARAMETER encoder, INST (-10dB)/LINE (+4dB) level selector switch Frequency: 50Hz, 100, 200, 400, 800, 1500, 2500, 3500, 7K, 10K (+/ 12dB) - Terminal: 1/4 inch standard phone jack x 2 (input, output), DC9V input jack (for AC adapter connection), DIN 5PIN connector 2 (MIDI IN, OUT/THRU) Power supply: DC9V dedicated AC adapter (FA-0905D-JA) - Current consumption: 200mA Size: 120(W) x 102.3(D) x 58.5(H)mm (including protrusions such as foot switch and jack)

2. PRODUCT DESCRIPTION: The PA-1Q series is a revolutionary product that further advances the fusion of digital and analog technology that FREE THE TONE cultivated through the development of AMBI SPACE and TRI AVATAR. At first glance, it looks like a digital equalizer effector, but this PA-1Q series is an ``analog equalizer''. The equalizer circuit (including the input/output section) through which the guitar and bass signals pass is entirely composed of analog circuits, and the rich tones of the guitar and bass are processed as they are as analog signals. It uses the same signal processing method as an old-fashioned graphic equalizer with slide volume. Although it is a normal analog effector as it is, the parameter control section of the PA-1Q series is a digital circuit that accurately stores and processes the status of various parameters digitally. As a result, we have created a revolutionary product that, while being an analog effect unit, allows for real-time control using presets and MIDI.

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 0.53 kg - Dimensions: 20.6 x 12.1 x 7.6 cm

4. SPECIFICATIONS: - Brand: FREE THE TONE - Model Number: PA-1QG - Manufacturer: FREE THE TONE
