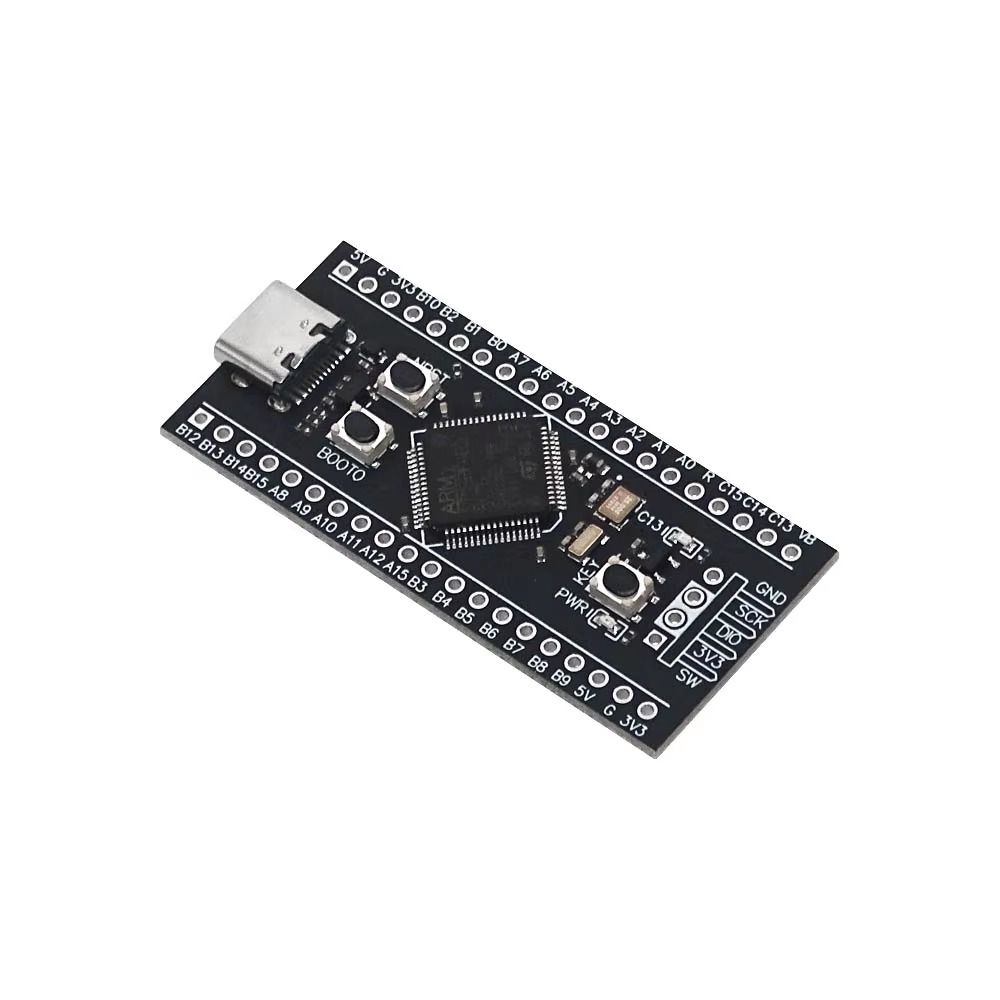

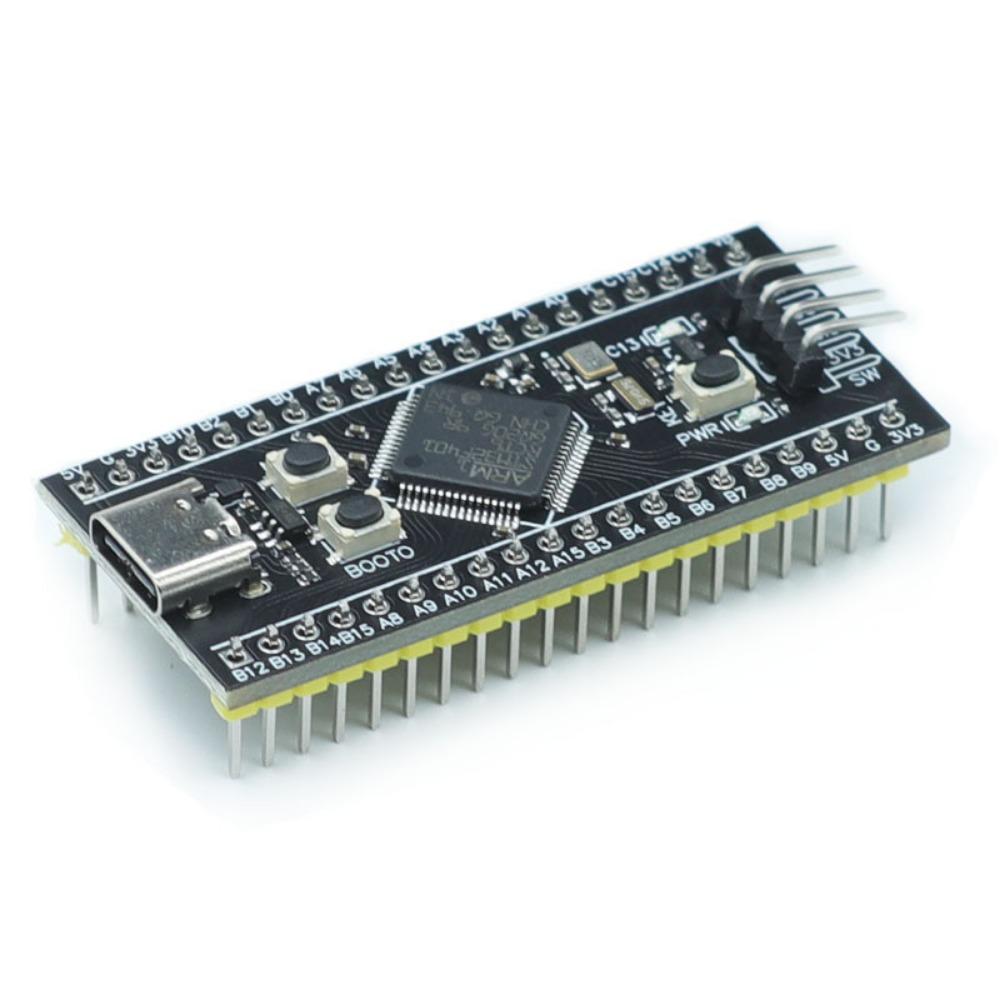

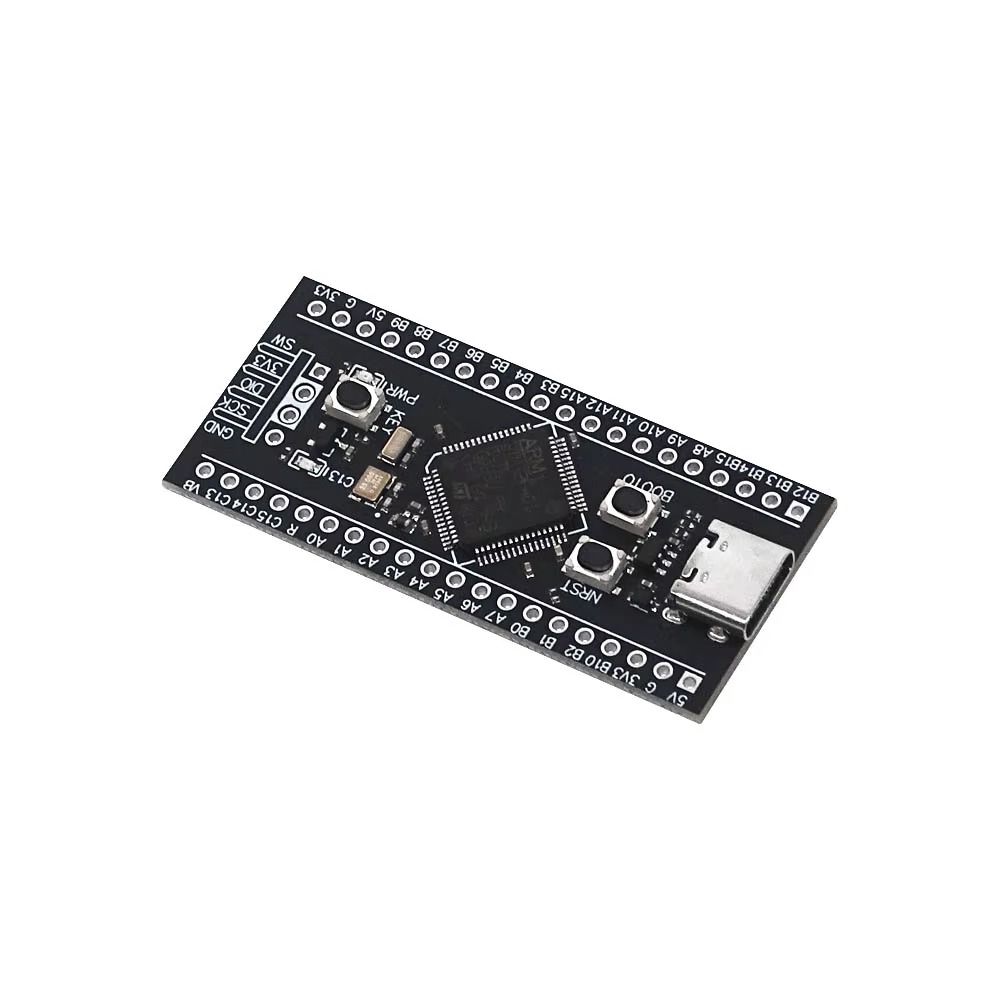

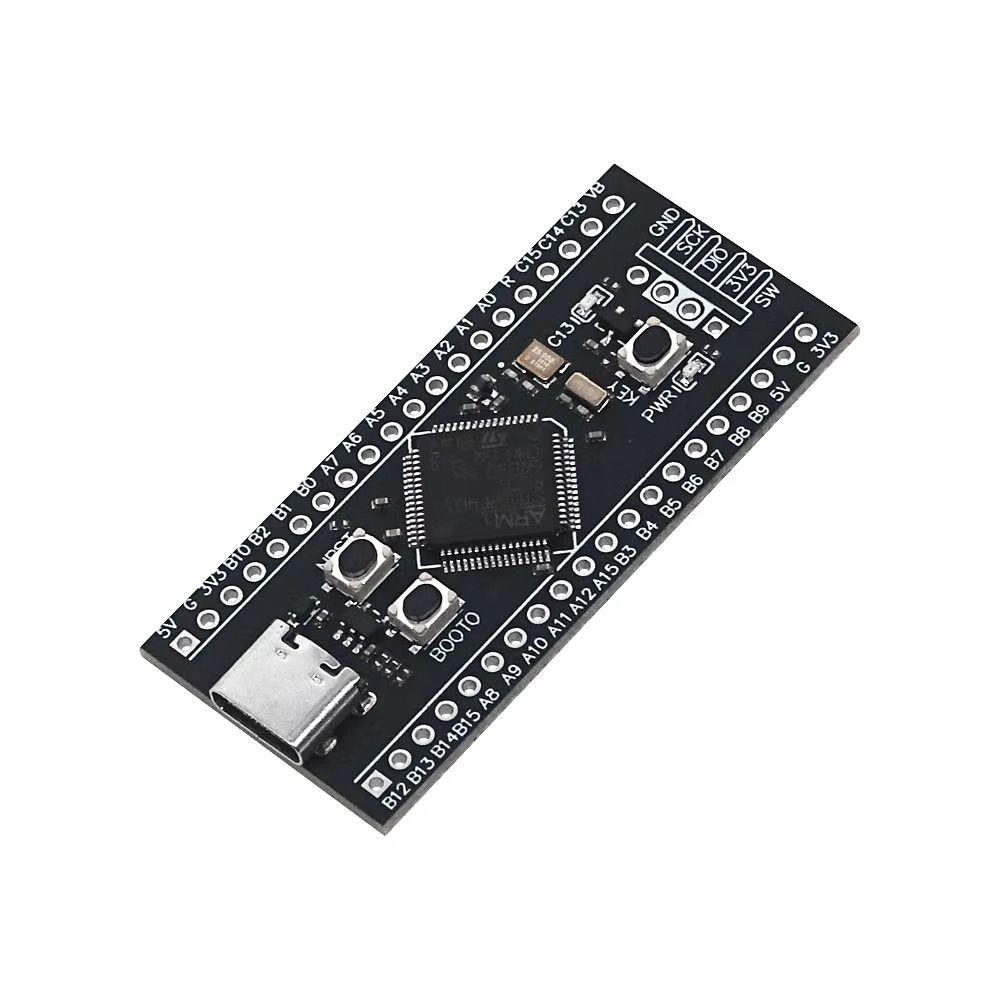

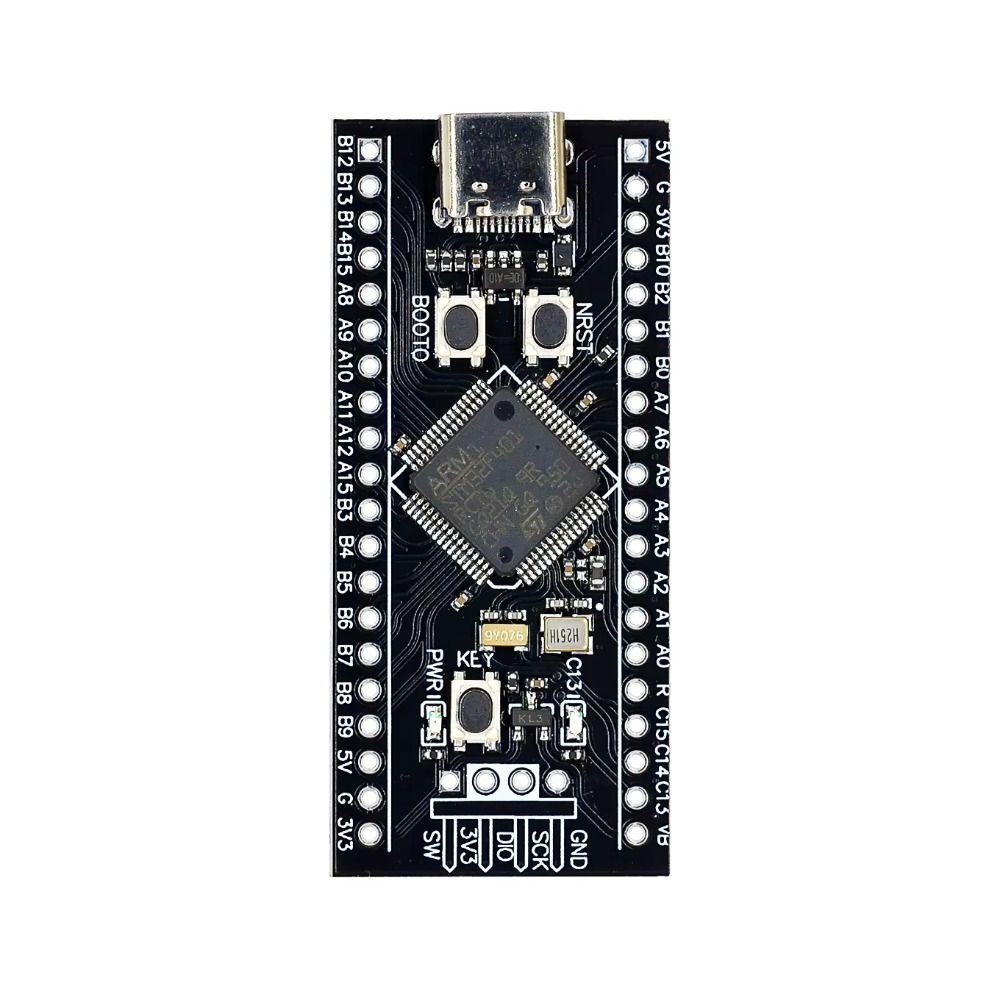

Core Board STM32F401CCU6 Core Board System Board System Board Development Projects

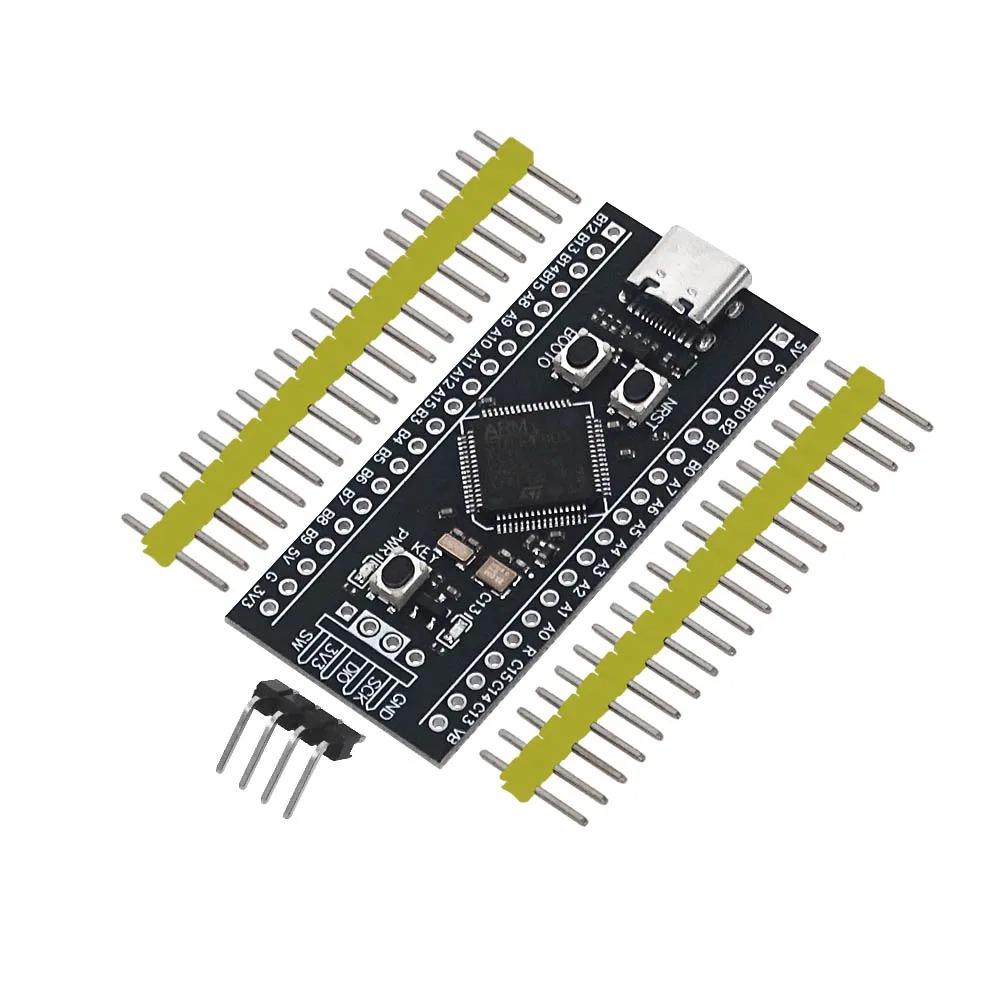

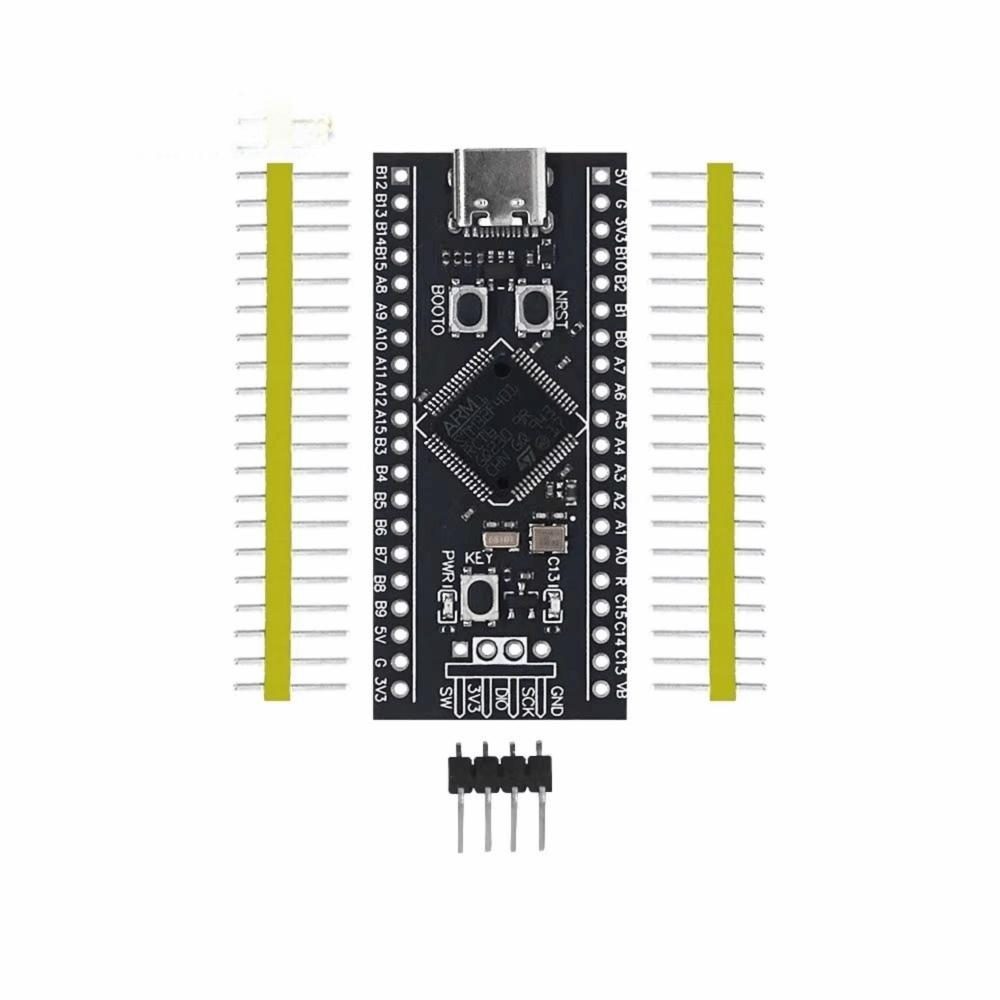

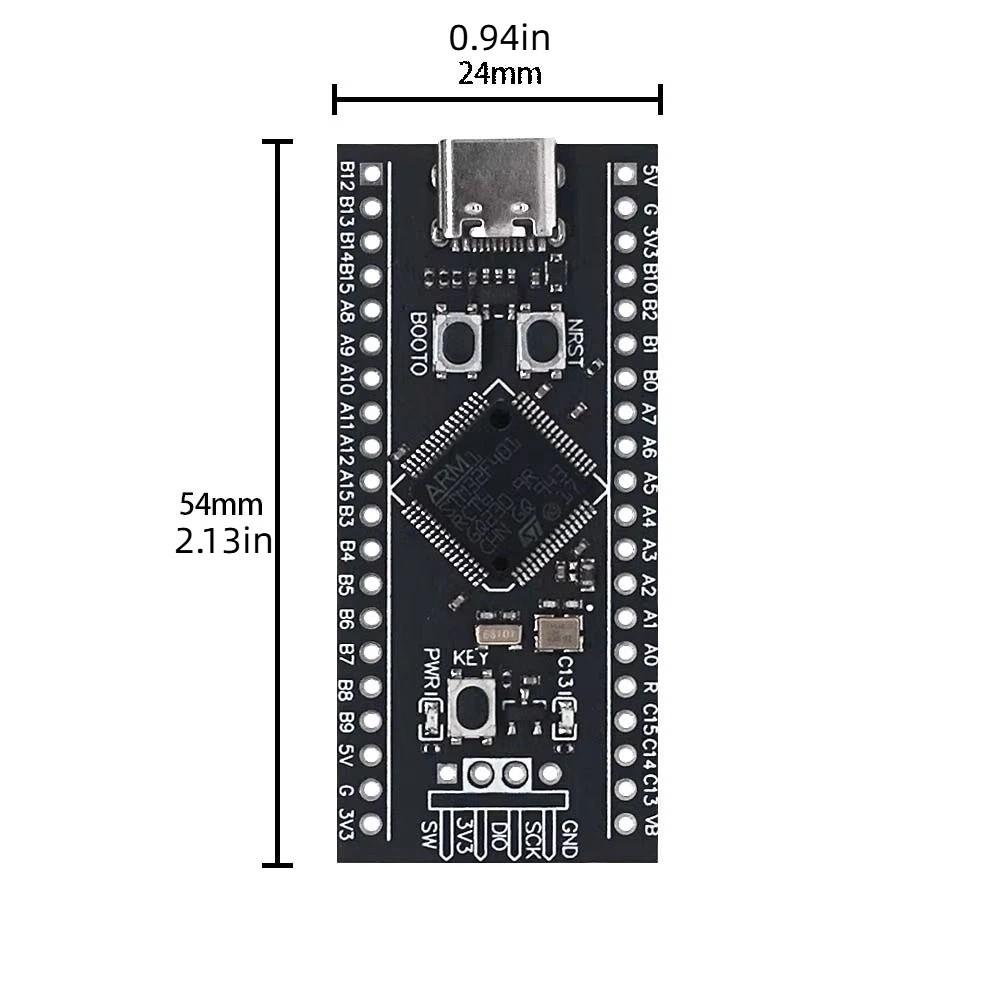

Label:Yes Package Includes:1 Pc STM32F401RCT6 Core Board Type:Development Board Color:As the picture shown Material:Fiberglass Board Size:54*24mm(2.13*0.94in)

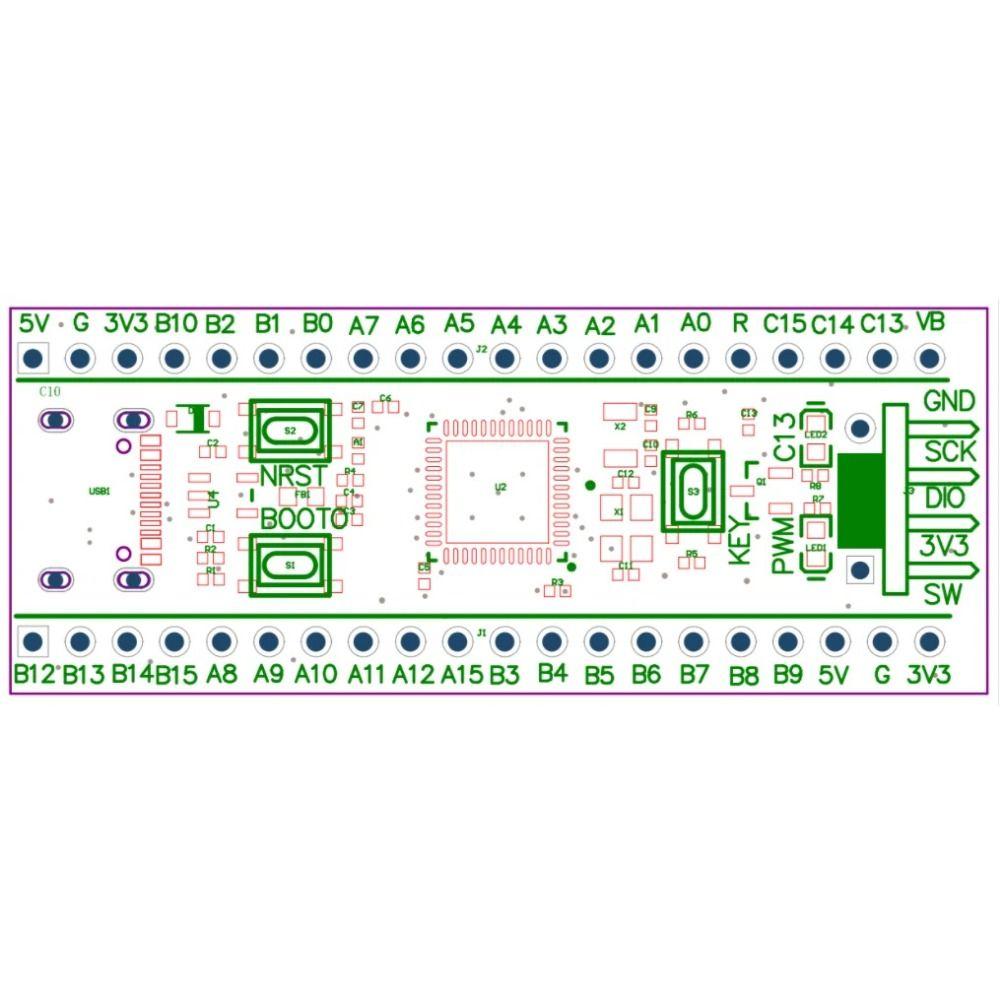

Description: The new version of the STM32F401RCT6 development board is fully compatible with the old version of STM32F401CCU6. The difference is that the chip packaging is different and can be directly replaced. ISP mode download Method 1: When powered on, press and hold the BOOT0 key and the reset key, then release the reset key. After 0.5 seconds, release the BOOT0 key Method 2: Under power off status, press and hold the BOOT0 key, and release the BOOT0 0.5s after power on USB data cable connects to the TYPE-C interface of MCU, and serial port connects to PA9 and PA10. STM32CubeProg, WeAct Studio Download Tool are recommended for downloading software Serial port download USB to serial port (ex.: CH340) TX - PA10, RX - PA9. At the same time, do not connect the Type-C of MCU to the computer. You must use external power supply, otherwise it will affect MCU download
