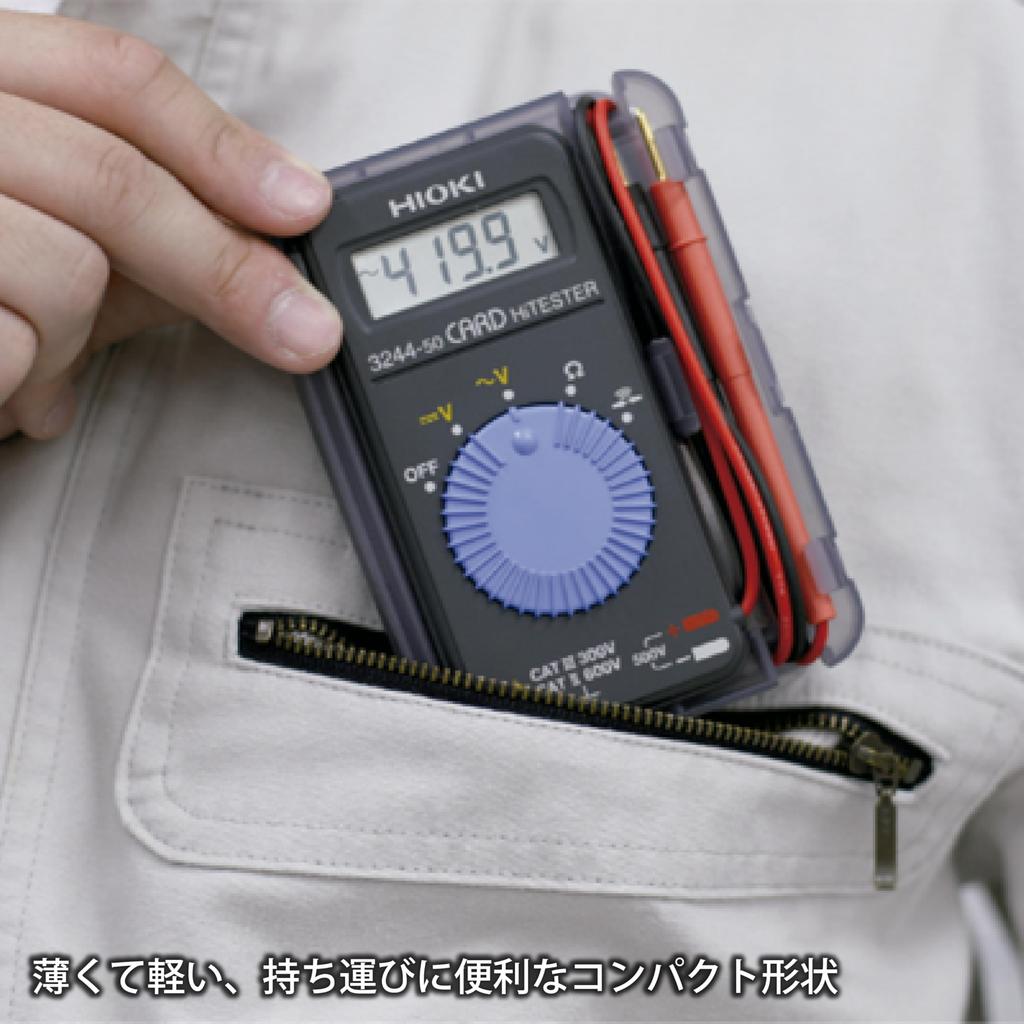

• Card-sized design, weighing 60g and measuring 9.5mm thick; thin, lightweight, and compact for easy portability.
• Supports measurement of AC voltage, DC voltage, resistance, and continuity checks; equipped with an auto power-saving function.

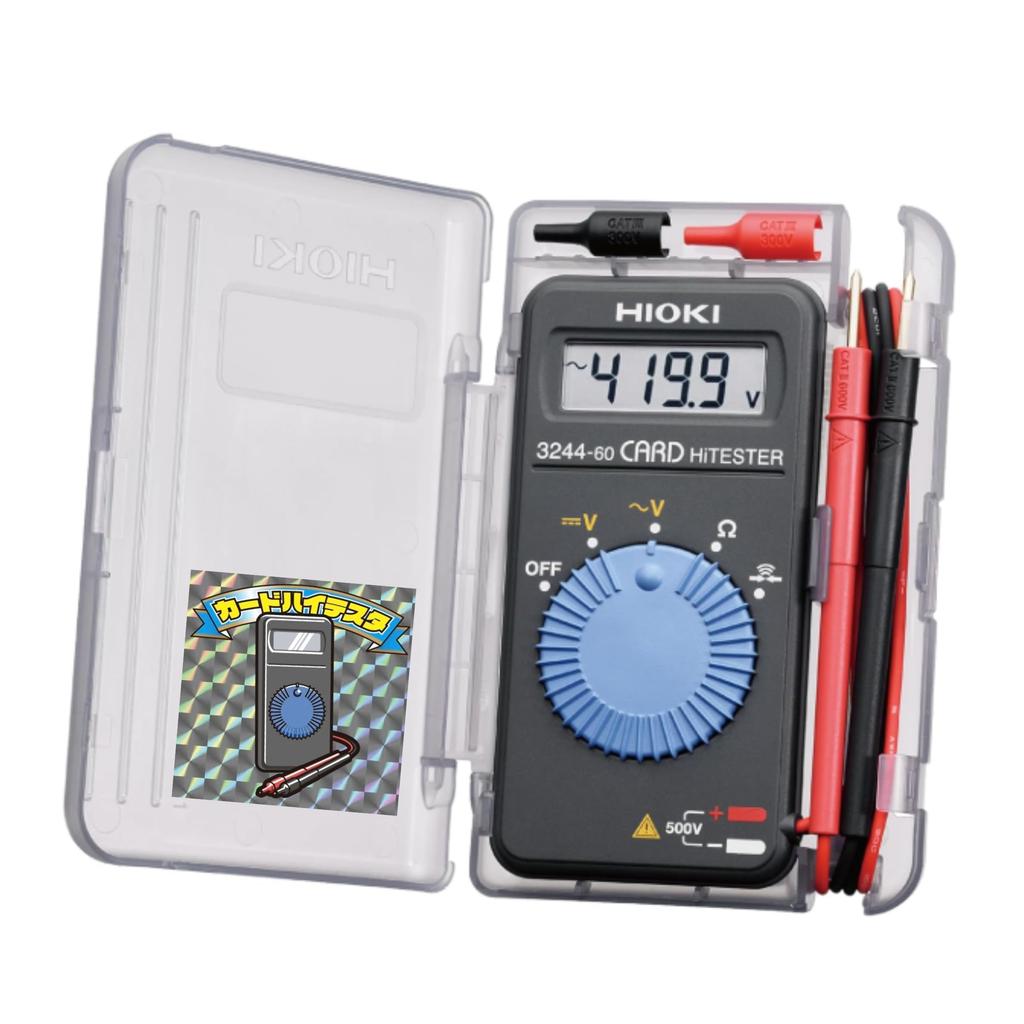

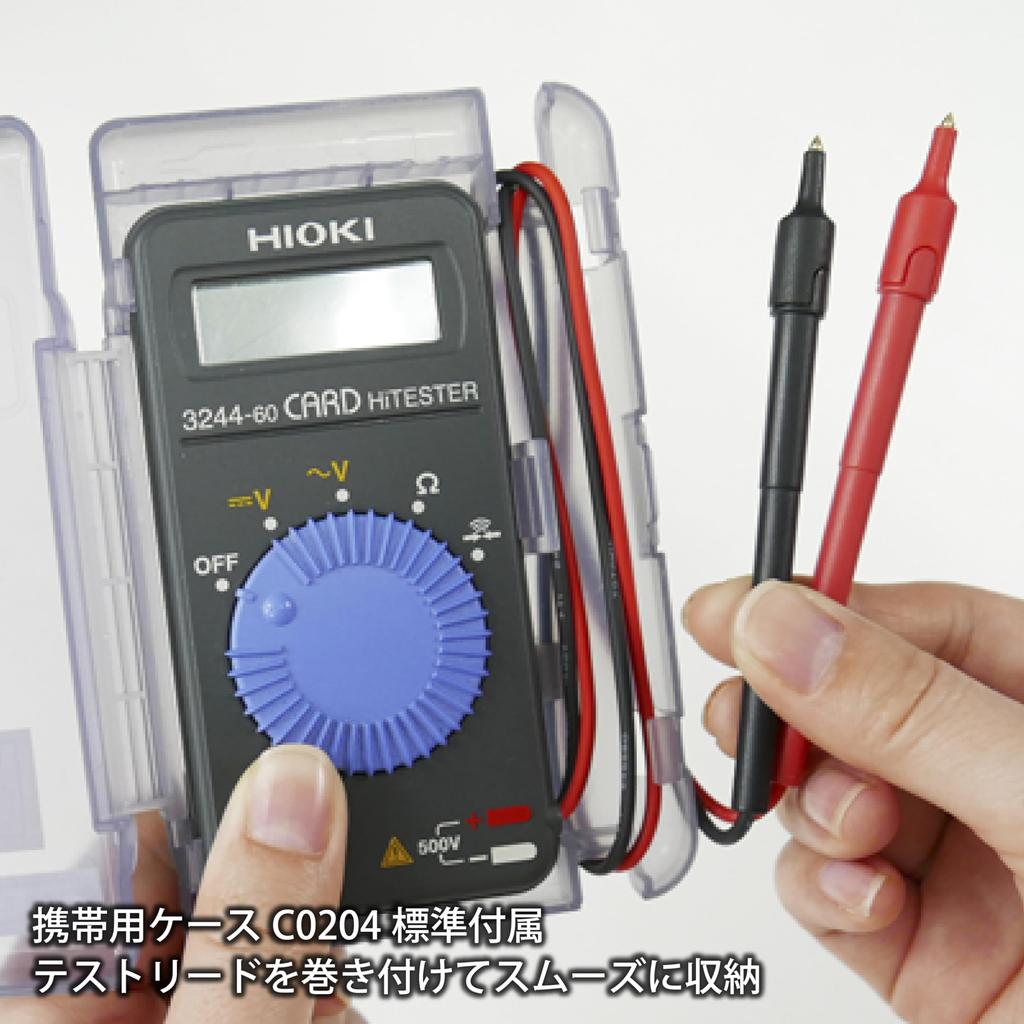

• Includes a convenient translucent hard case (C0204).

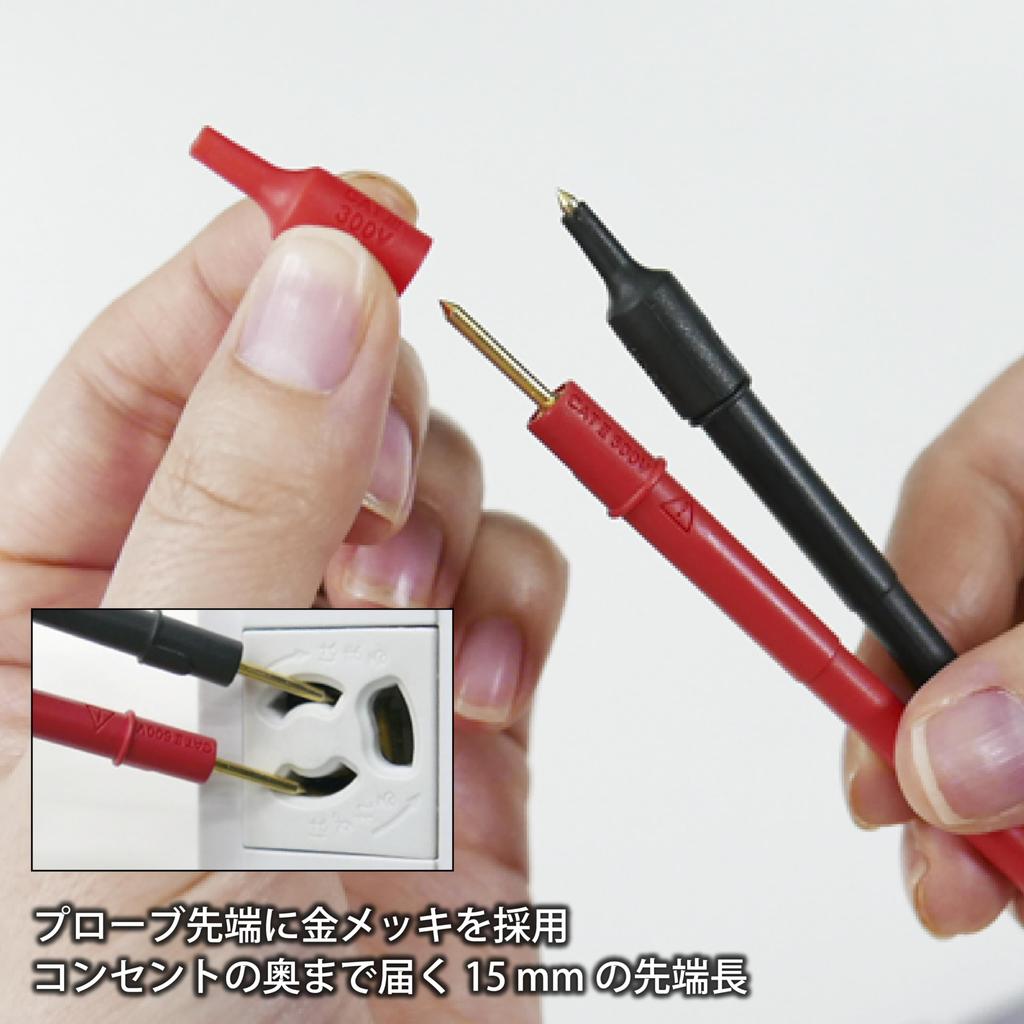

• Gold-plated probe tip; 15mm tip length reaches deep into outlets.
• Complies with CAT III 300 V as defined by safety standards (EN61010 series, JIS C 1010 series).
【Measurement Items】
AC Voltage ○, DC Voltage ○, Resistance ○, Continuity Check ○
- AC Voltage (Range) 4.200 V/ 42.00 V/ 420.0 V/ 500 V, (Accuracy Range) 4.199 V to 500 V, (Representative Accuracy) ±2.3% rdg ±8 dgt
- DC Voltage (Range) ) 420.0 mV / 4,200 V / 42.00 V / 420.0 V / 500 V, (Accuracy Range) 419.9 mV to 500 V, (Typical Accuracy) ±0.7% rdg ±4 dgt
- Resistance (Range) 420.0 Ω / 4,200 kΩ / 42.00 kΩ / 420.0 kΩ / 4,200 MΩ / 42.00 MΩ, (Accuracy Range) 419.9 Ω to 41.99 MΩ, (Typical Accuracy) ±2.0% rdg ±4 dgt
[Features]
AUTO Power Save ○, AUTO Range Switching ○, Battery Life Warning Display ○
[Power Supply]
Coin-type Lithium Battery (CR2032) 1 unit
[Continuous Use Time]
Approximately 150 hours
[Dimensions and Weight]
Approximately 55W × 109H × 9.5D mm, Approximately 60 g
[Accessories]
Original sticker (1 sheet), C0204 carrying case, coin-type lithium battery (CR2032), lead caps (1 each of red and black), instruction manual
[Country of Origin]
Japan
Card-sized, weighing 60g and 9.5mm thick; thin, light, and compact for easy portability
Supports measurement of AC voltage, DC voltage, resistance, and continuity checks; equipped with auto power save function
Includes a convenient translucent hard case (C0204)
Gold-plated probe tip; 15mm tip length to reach deep into outlets
Complies with CAT III 300 V as defined by safety standards (EN61010 series, JIS C 1010 series)
