ELECOM USB Type-C Hub Docking Station 8-in-1 with Stand, PD Compatible, 100W, 2 x USB 3.1 Gen1 Ports, 1 x HDMI Port, 3 x USB-C Ports, SD + microSD Slo

【Specifications】 ■Supported OS (Windows): Windows 11/Windows 10 ■Supported OS (macOS): macOS Ventura 13/macOS Monterey 12 ■Supported OS (iPadOS): iPadOS 16 ■Supported OS Notes: *Updating to the latest version of each OS or installing service packs may be required.

■Connector Specifications (Upstream): USB Type-C(TM) <USB 10Gbps (USB3.2 (Gen2))>, USB Power Delivery compatible (Maximum input 100W / Maximum output 85W), DisplayPort(TM) Alt mode (When connected via USB2.0, operates in USB2.0 compatible mode (Video output is not supported when connected via USB2.0)) ■USB Port (Downstream): 1: USB Type-C(TM) <USB 10Gbps (USB3.2 (Gen2))> x 2 *Data communication only, video output is not supported.

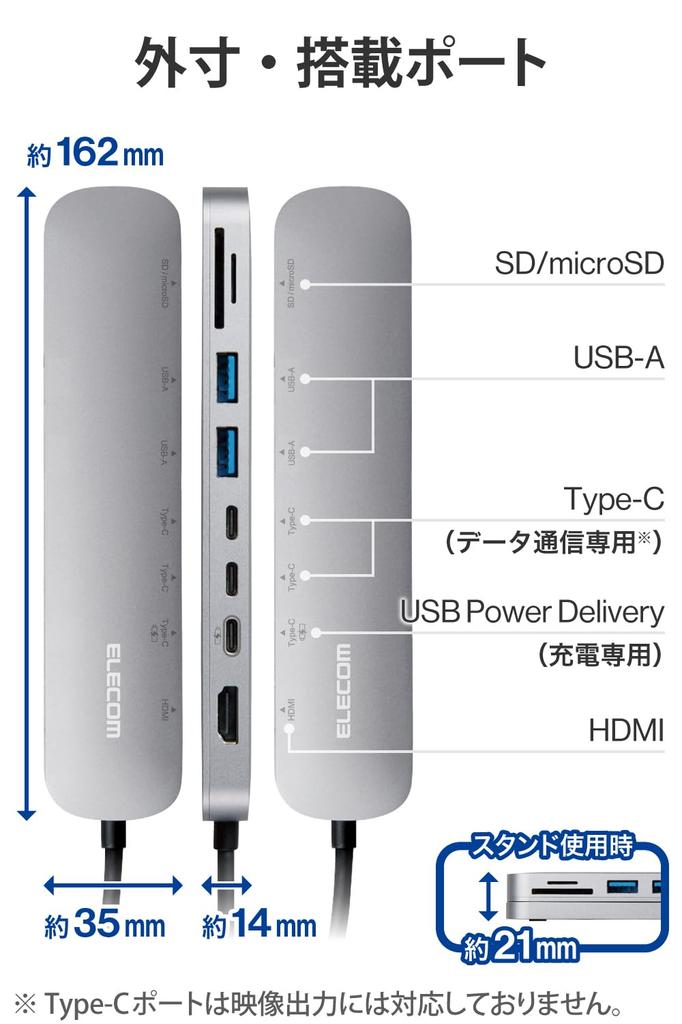

■USB Ports (Downstream): 2: USB Type-C(TM) x 1 <Maximum Output 85W> *Charging-only USB Power Delivery port ■USB Ports (Downstream): 3: USB Standard-A <USB 10Gbps (USB3.2 (Gen2)), Power Supply Value: Total for 2 Ports> 4.5W (5V/0.9A) > x 2 ■Video Output Port (Downstream): HDMI x 1 <Supported Resolution: Up to 4K/60Hz> ■Card Reader (Downstream): 1: SD Memory Card, Supported Media: SD (HighSpeed/ProHighSpeed/Class2/4/6/10), SDHC (Class2/4/6/10/UHS-I), SDXC (Class10/UHS-I) ■Card Reader (Downstream): 2: microSD Memory Card, Supported Media: microSD, microSDHC (Class2/4/6/10/UHS-I), microSDXC (Class10/UHS-I) ■Power Supply Method: Bus Power ■Cable Length: Approx. 30cm (excluding connector) ■Color: Silver ■External Dimensions: 1: Product Body (excluding mounting stand): Approx. 162mm (W) x 35mm (D) x 14mm (H) *Excluding cable ■External Dimensions: 2: Product body + fixing stand: Approx. 162mm (W) x 35mm (D) x 21mm (H) *Excluding cable and protruding parts ■Operating Environment: Temperature 5-40℃, Humidity 30-80% *No condensation ■Warranty Period: 1 year ■Accessories: Fixing stand, fixing double-sided tape x 2

【Description】 ■This is a docking station that connects to a PC via a USB Type-C(TM) connector, allowing you to connect USB devices and HDMI displays.

■The connection to the PC supports USB 10Gbps (USB3.2(Gen2)), achieving ultra-high-speed data transfer of up to 10Gbps (theoretical value).

■Equipped with two USB Type-C(TM) ports that support USB 10Gbps (USB3.2(Gen2)).

■*For data communication only; does not support video output.

■*To use USB 10Gbps, your PC/device must support USB 10Gbps.

■ Equipped with one USB Type-C(TM) port that supports USB Power Delivery.

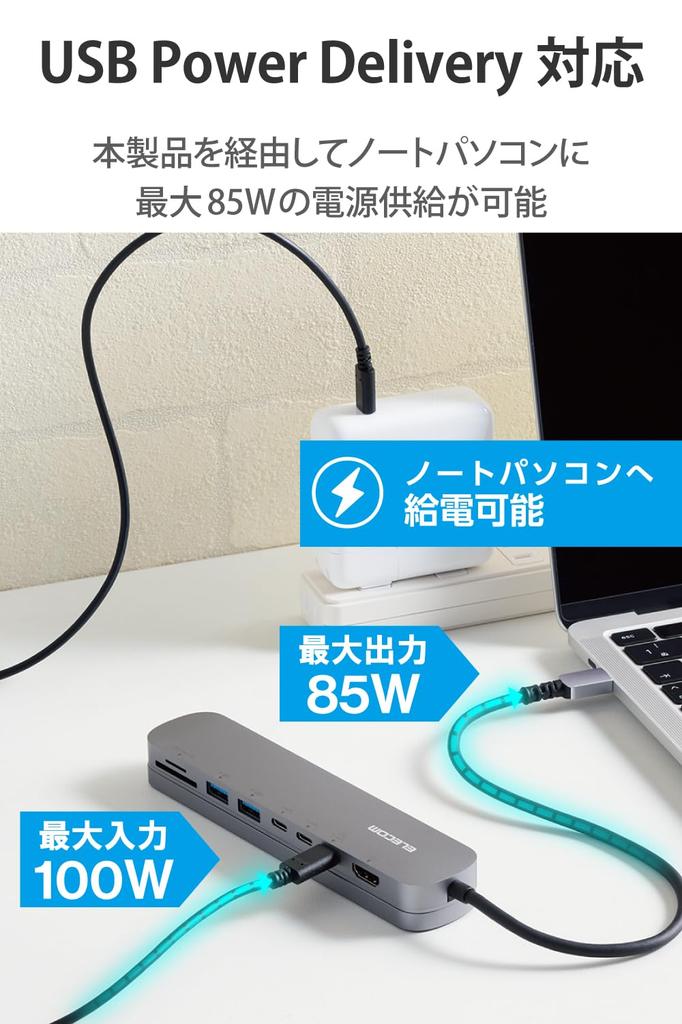

■ Supports USB Power Delivery, which supplies up to 100W (*) of power to the device/PC via the USB Type-C(TM) connector.

■ By connecting a USB Type-C(TM) power adapter, you can charge your PC through this product.

■ *The product itself consumes 15W, so the actual output is a maximum of 85W.

■ *If 85W power supply is required, please use a 100W output charger.

■ Equipped with two USB Standard-A ports that support USB 10Gbps (USB 3.2 (Gen2)).

■ Equipped with an HDMI port that allows video output from the PC to an external monitor.

■ *When outputting video with this product, please ensure that the device supports DisplayPort(TM) Alt mode.

■ Equipped with an SD card slot and a microSD card slot that support SDXC/SDHC.

■The USB Type-C(TM) connector is reversible, allowing for easy insertion regardless of orientation.

■*Only usable with computers that come standard with a USB Type-C(TM) connector.

■Features a high-quality aluminum casing with excellent heat dissipation and noise resistance.

■Slim design for easy portability.

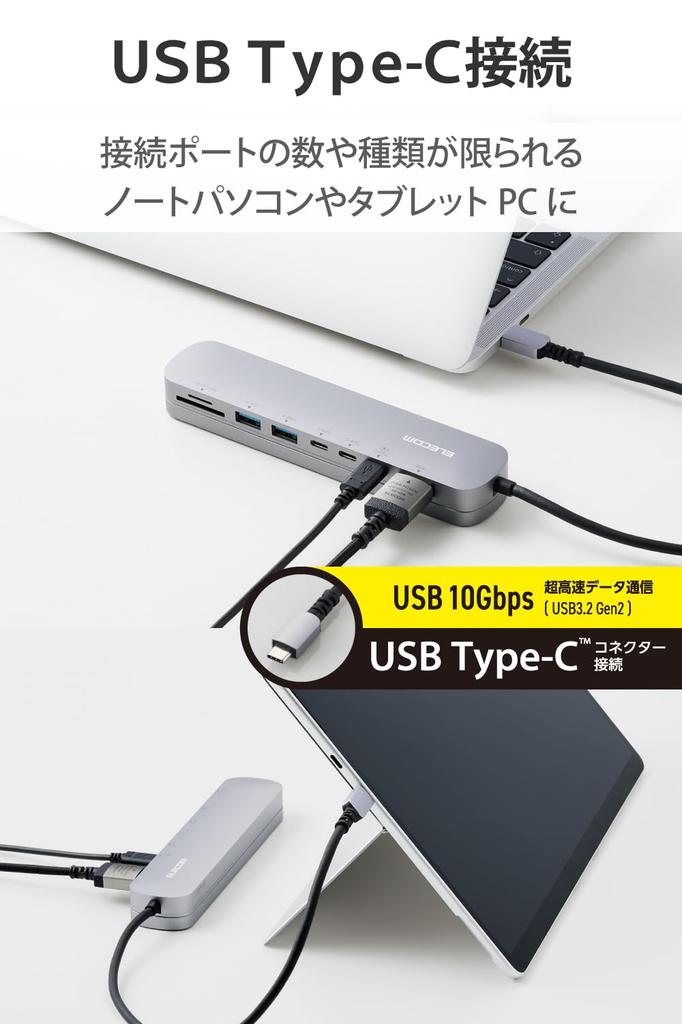

■The cable is directly attached, eliminating the worry of loss. The cable length of approximately 30cm allows for comfortable connection even with tablet PCs/2-in-1 computers.

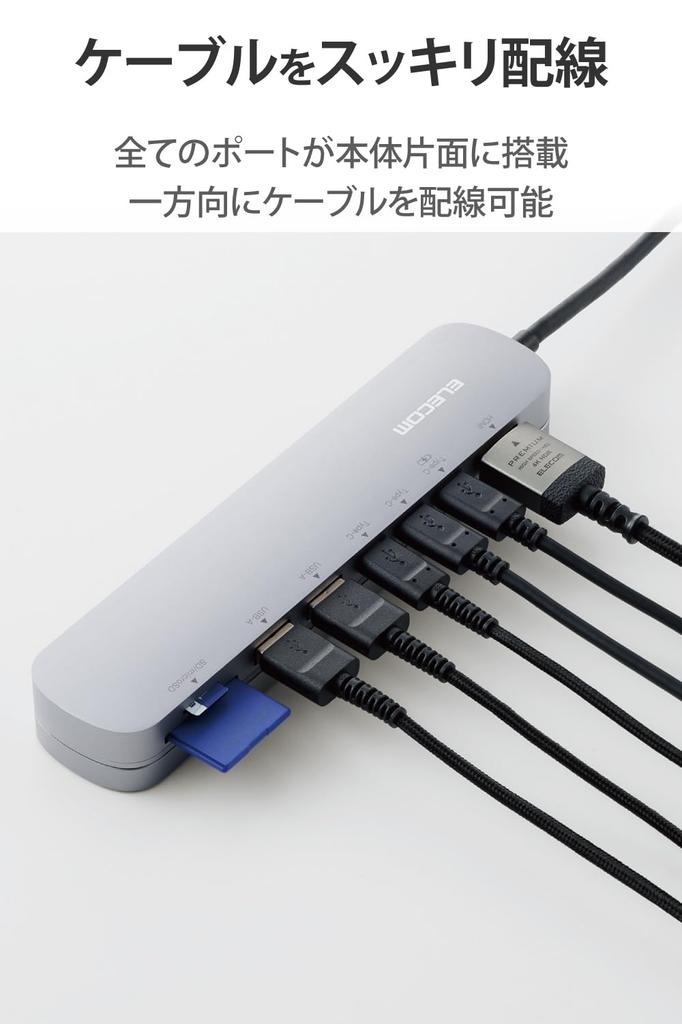

■All ports are located on one side of the unit, making cable management easy and keeping your desk tidy.

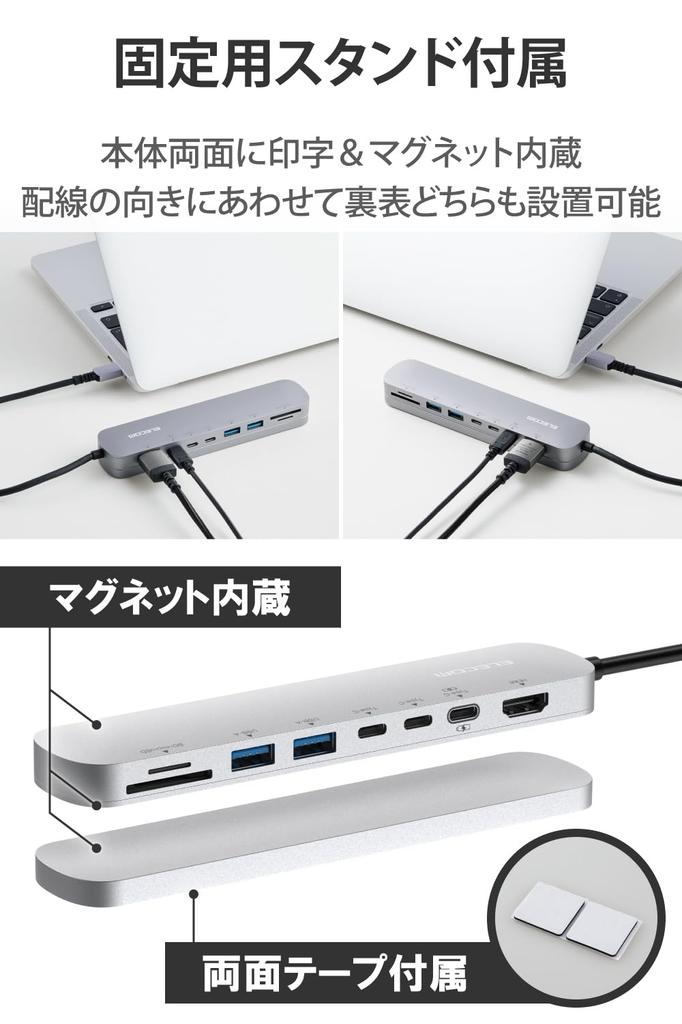

■Includes a stand that can be fixed to your desk with double-sided tape. The product itself attaches to the stand magnetically for easy attachment and detachment.

■The unit has a symmetrical design, allowing it to be attached to the stand either way.

■*If your device does not support charging via a USB Type-C(TM) connector, you cannot charge the unit via this product's USB Type-C port. Please ensure your device supports USB Power Delivery when charging.

■*This product will not work on system screens or BIOS screens before the OS boots.

■*Please connect this product directly to the USB Type-C(TM) port on your computer. This product cannot be used when connected to a USB hub or expansion board's USB Type-C(TM) port.

■*USB Type-C and USB-C are trademarks of the USB Implementers Forum.

■This product meets at least one of our company's environmental certification standards and displays the 'THINK ECOLOGY' mark.

■This product is committed to waste reduction, with paperless instruction manuals and other documents included.

■This product is committed to environmental protection, with the plastic weight in the product packaging reduced by more than 20% compared to our company's standard products.

■This product is committed to environmental protection, with packaging made solely from paper, cardboard, and plastic bags.

This docking station features a USB Type-C(TM) port compatible with USB 10Gbps (USB3.2(Gen2)). All ports are located on one side of the unit, and it comes with a stand that can be fixed to a desk with double-sided tape, allowing for a neat and tidy setup. The connection to your PC supports USB 10Gbps (USB 3.2 (Gen2)), enabling ultra-high-speed data transfer of up to 10Gbps (theoretical value).

It features two USB Type-C(TM) ports that support USB 10Gbps (USB 3.2 (Gen2)).

*For data communication only; video output is not supported.

*To use USB 10Gbps, your PC/device must also support USB 10Gbps.
