ToneShaper Guitar Wiring Kit for Fender Telecaster SS3 4-Way ToneShaper

[Product Description]

[Product Description]

Connecting two coils in series rather than parallel results in a significantly different tone. In a Telecaster with two pickups, traditional parallel wiring provides relatively consistent output across all three positions. Switching to series wiring produces a higher output and a richer tone. Both wiring options are available with a 4-position switch. Our wiring kits SS2 and SS3 are very similar, but the switch positions for series connection differ. In SS3, the series connection is assigned to position 3. This layout is slightly closer to a standard Telecaster compared to Fender's layout. • Position 4: Neck pickup • Position 3: Bridge + Neck pickups (series) • Position 2: Bridge + Neck pickups (parallel) • Position 1: Bridge pickup

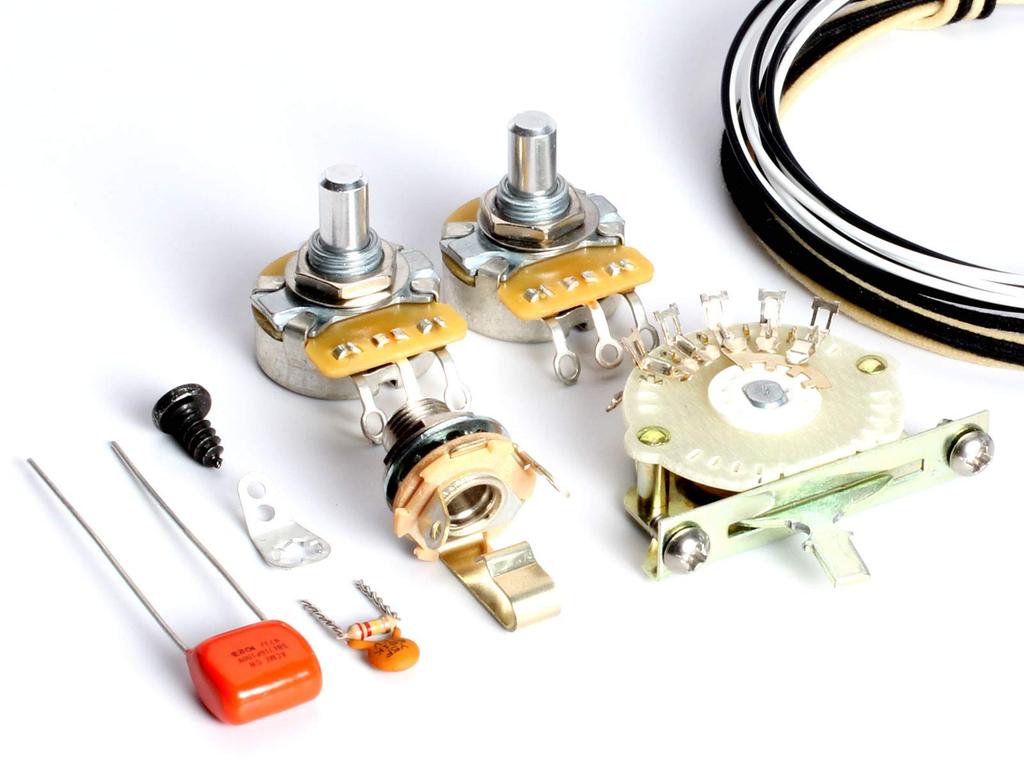

When using reverse wound, reverse polarity pickups, hum-canceling effects can be achieved at positions 2 and 3. If the neck pickup has a cover, insulate the cover from the black wire of the pickup and the separate ground wire to maintain shielding (no issue if the neck pickup has no cover). • (1) Capacitor, .047μF Orange Drop • (1) Jack, Switchcraft, 1/4" (6.35mm), Mono, Long Bushing • (2) Potentiometers, CTS 250K Audio, Low Torque (bushing length .250" [6.35mm]) • (1) Grounding lug mounting screw • (1) Grounding lug • (1) Switch, 4-pole, Oak-Grigsby • (1) Single-coil treble bleed kit • (2) Wires, 22AWG Cotton Pushback + Tinned Copper, Black • (2) Wires, 22AWG Cotton Pushback + Tinned Copper, White • (2) Wires, 22AWG Silver-plated Copper, Black PTFE • (2) Wires, 22AWG Silver-plated Copper, White PTFE • (1) Professional detailed wiring diagram Premium OEM parts brand: optimal parts for your guitar All necessary hardware included, lightweight: everything you need No inexpensive generic parts used (e.g., 450G pots, 400V/600V caps): only the highest quality custom parts for your guitar UTS thread for USA guitars. May require drilling for imported guitars. Professional wiring diagram: industry-leading quality documentation
