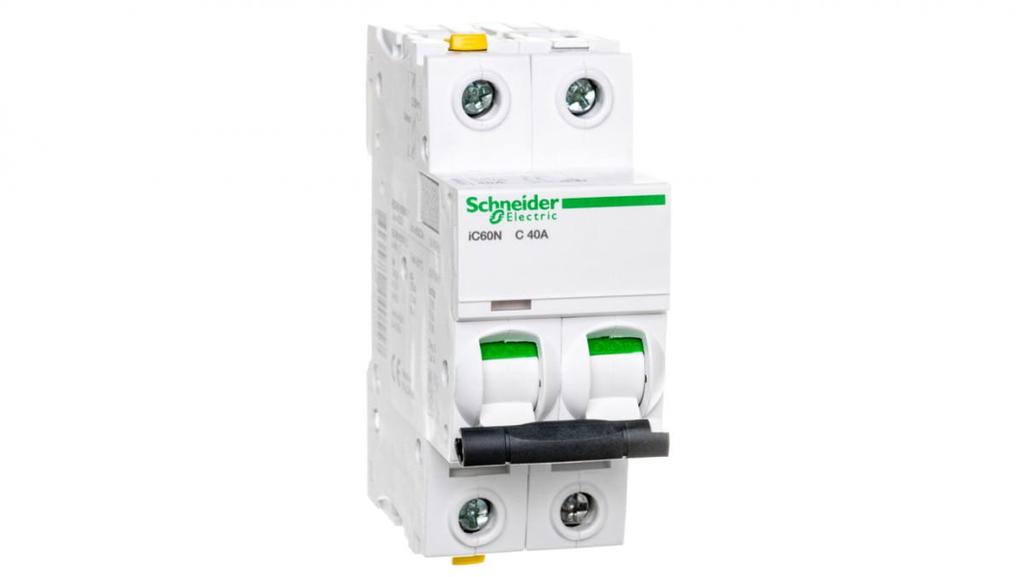

Circuit Breaker 2P C 40A 6Ka Ac Ic60N-C40-2 Acti9 A9F04240

Frequency [Hz]: 50

Installation depth [mm]: 69.5000

Manufacturer's index: A9F04240

Rated voltage [V]: 400

Rated current [A]: 40

series: Acti9

Protection degree (IP): IP20

Rated short-circuit breaking capacity according to EN 60898 [kA]: 6

Rated short-circuit breaking capacity according to IEC 60947-2 [kA]: 6

Tripping characteristic: C CN: 85362010 Length: 90 EAN: 3606480440557 Simultaneously disconnected N pole: No Overvoltage category: 4 Energy limitation class: 3 Number of poles: 2 Possibility of additional equipment: Yes PKWiU: 27.12.22.0 Voltage type: AC Pollution degree: 3 Width: 75 Width expressed in number of modules: 2 Weight: 0.2500 Height: 35
