Feature:

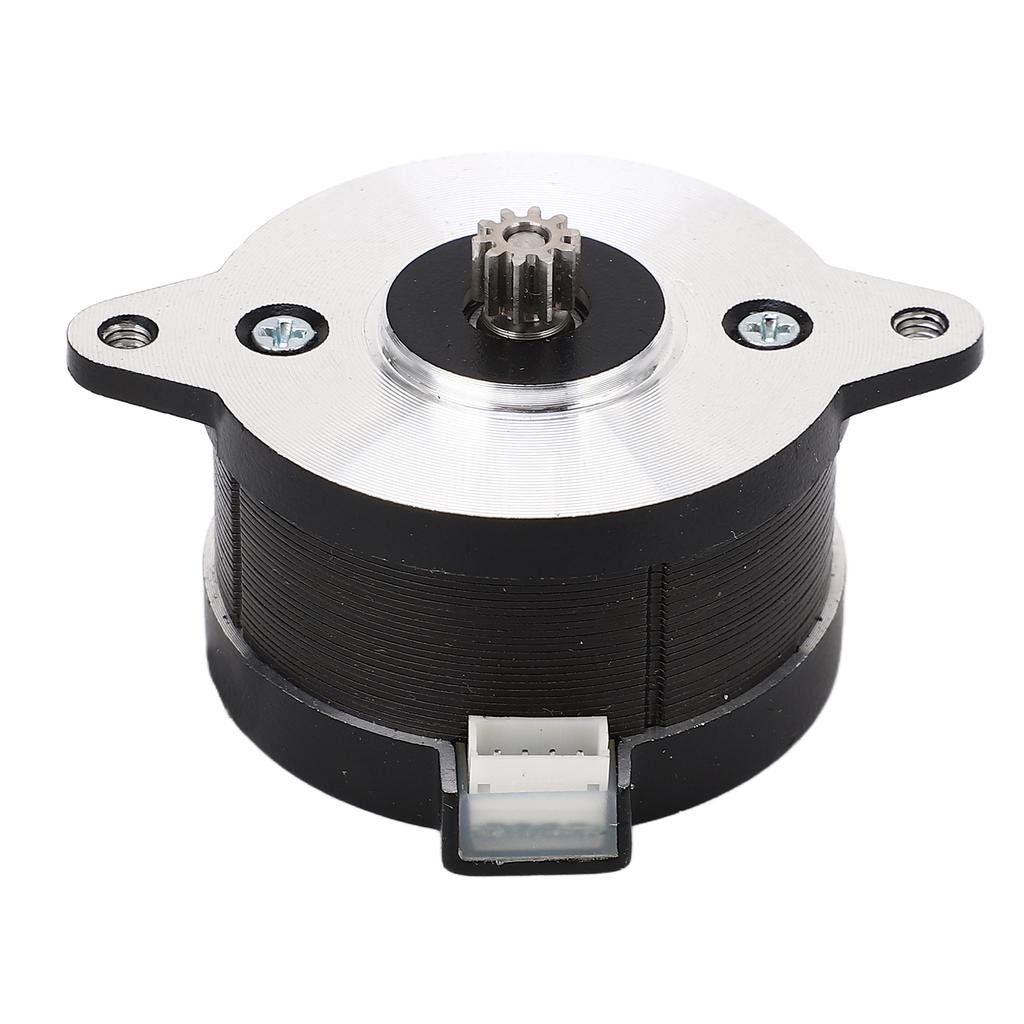

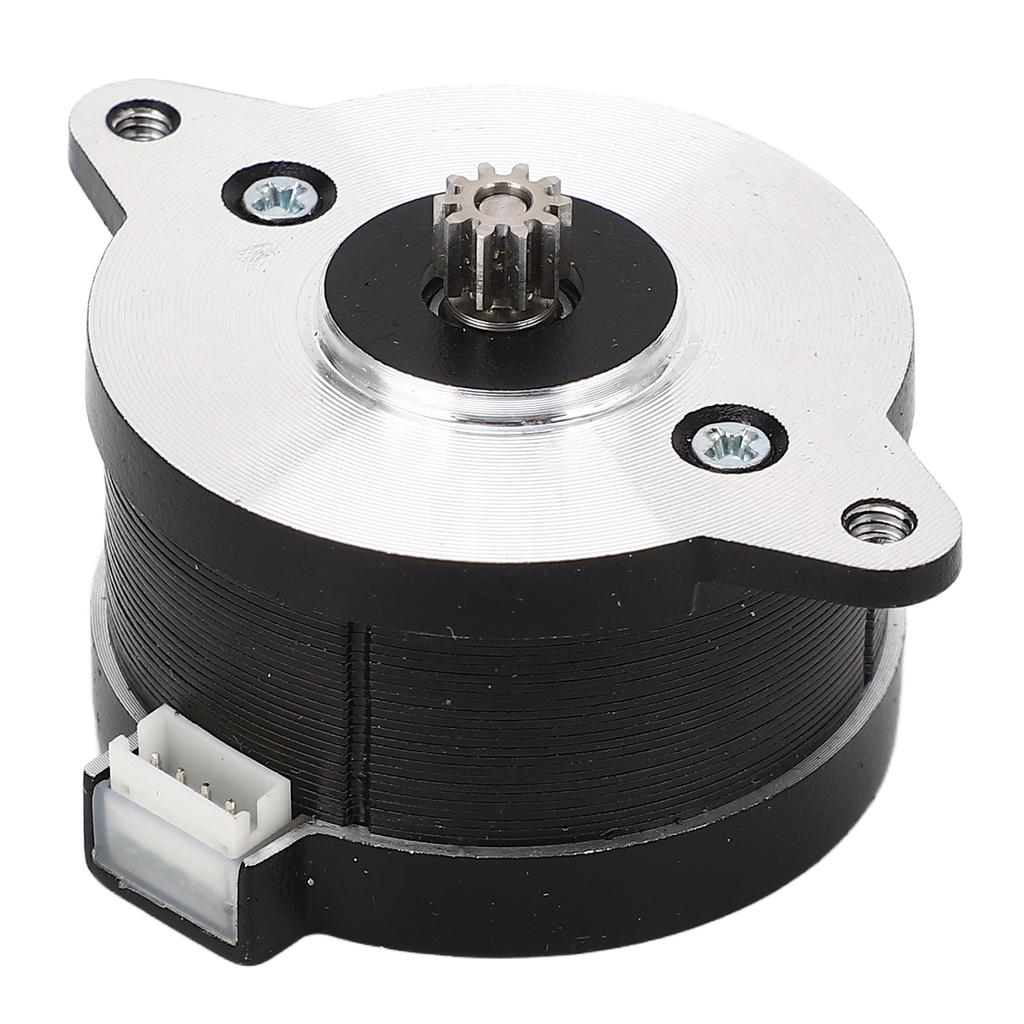

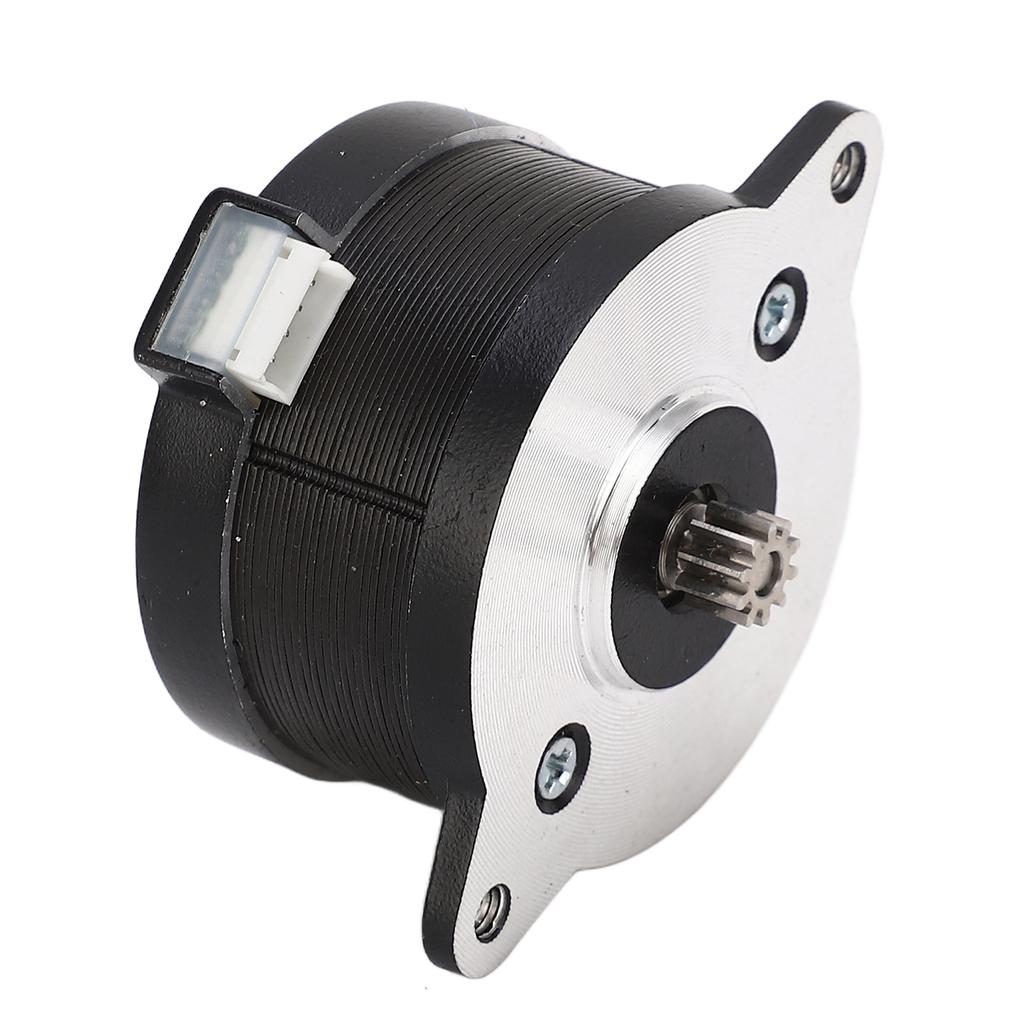

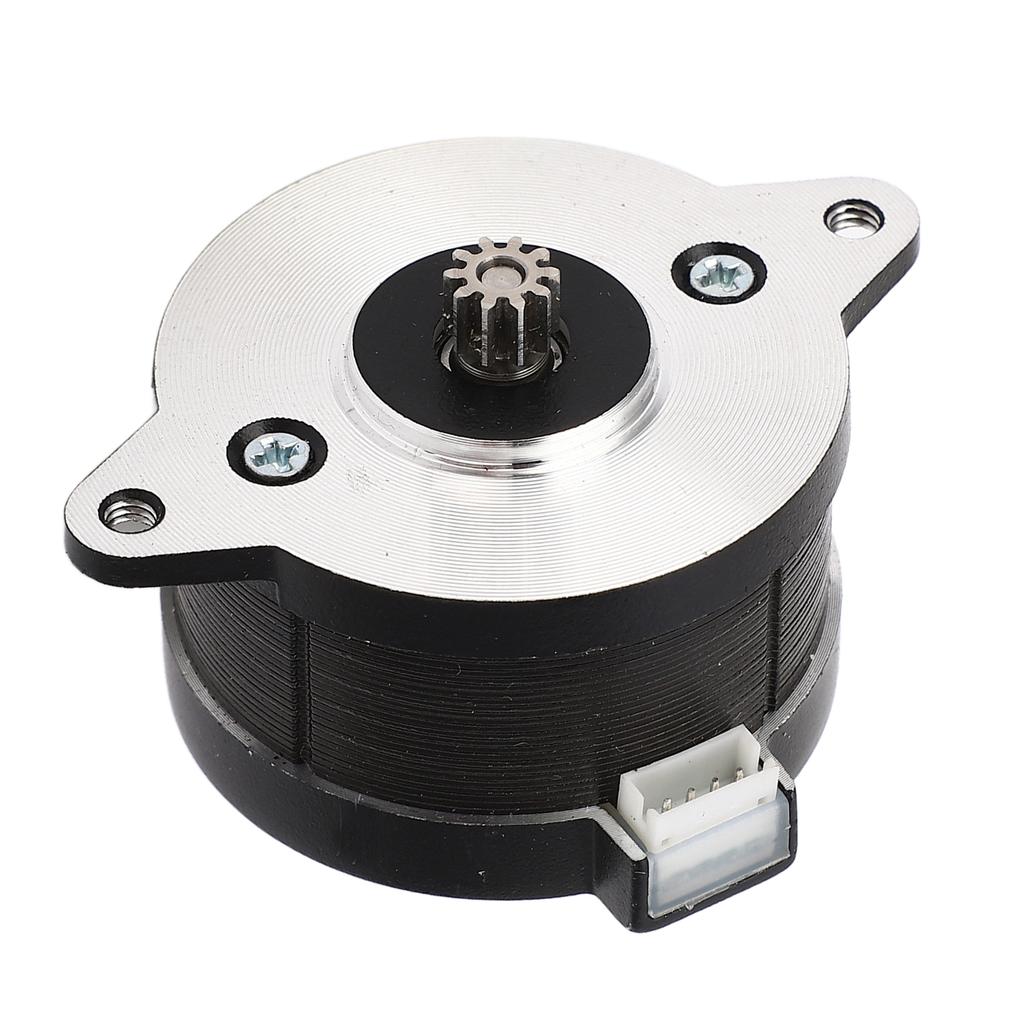

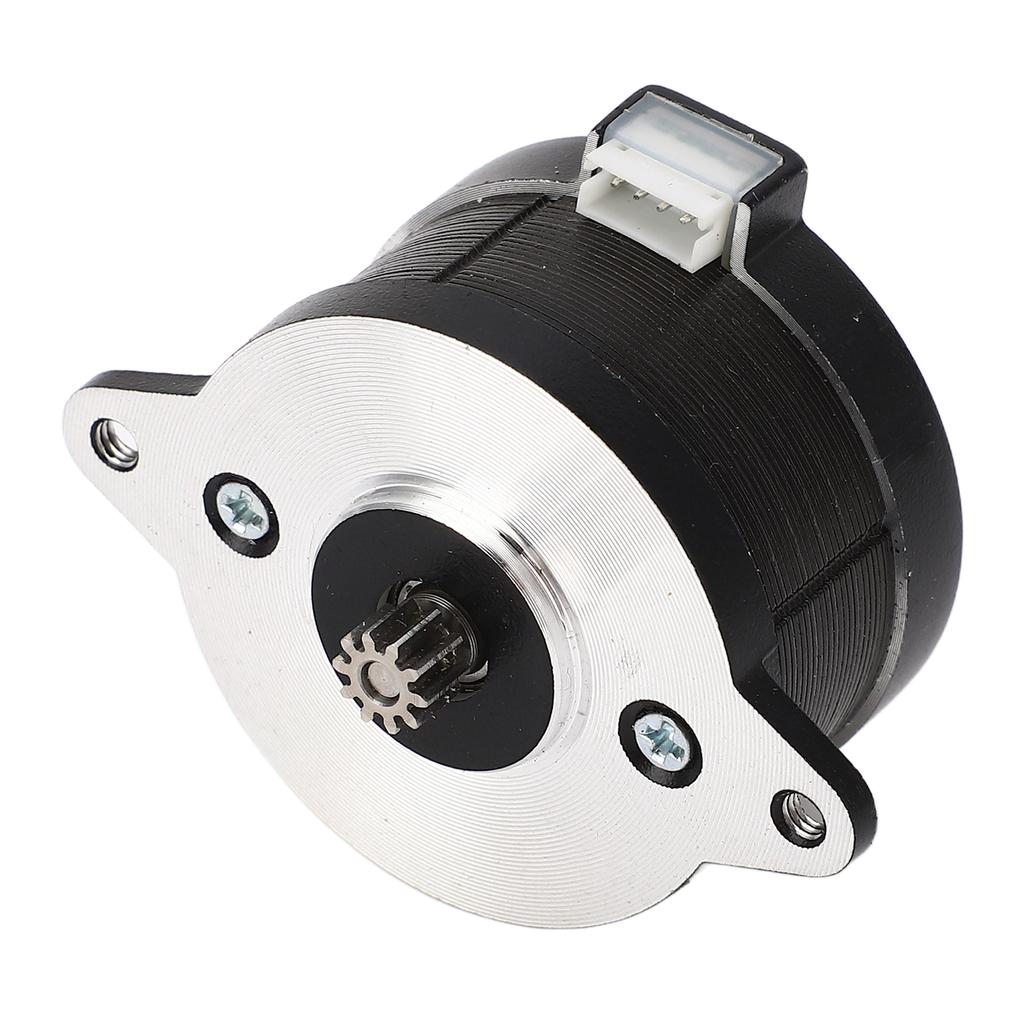

1. VOLTAGE CURRENT: 36mm round stepper motor, 1.8 degree step angle, the rated voltage is DC2.1V per phase, current is DC1.0A per phase.
2. HIGH TORSION: Holding torsion up to 100mN?m MIN, low loss stator with good thermal control capability, with good performance.
3. STAINLESS STEEL: The stepper motor is made of stainless steel, rustproof and corrosion resistant, and can withstand harsh environments.
4. FINE WINDING: With 130 celsius high temperature winding design, ensuring that the motor does not lose step during temperature rise.
5. APPLICATION: For 3D printers or extruders, for Reprap Ender 3, for Ender 3 Pro, for Ender 3 V2, for Ender 5, for CR 10 and other model.
Specification:
Item Type: Stepper Motor
Material: Stainless Steel
Rated Voltage: DC2.1V Per Phase
Phase Resistance: 2.1x(1+10percent ) Ohm
Holding Torsion: 100mNm MIN
Rotation Direction: ACBDA CW
Withstand Voltage: AC600V, 1mA, 1S
Rotor Inertia: 16gcm2REF
Step Angle: 1.8 degrees +5percent
Rated Current: DC1.0A Per Phase
Phase Inductance: 1.6x(1+20percent )mH
Braking Torsion: 5mNm REF
Insulation Resistance: 100M Ohm (DC500V)
Insulation Grade: Class H 180 celsius
Motor Wire Length: Approx. 1 meter 3.3ft
Compatibility: 12V and 24V.
Package List:

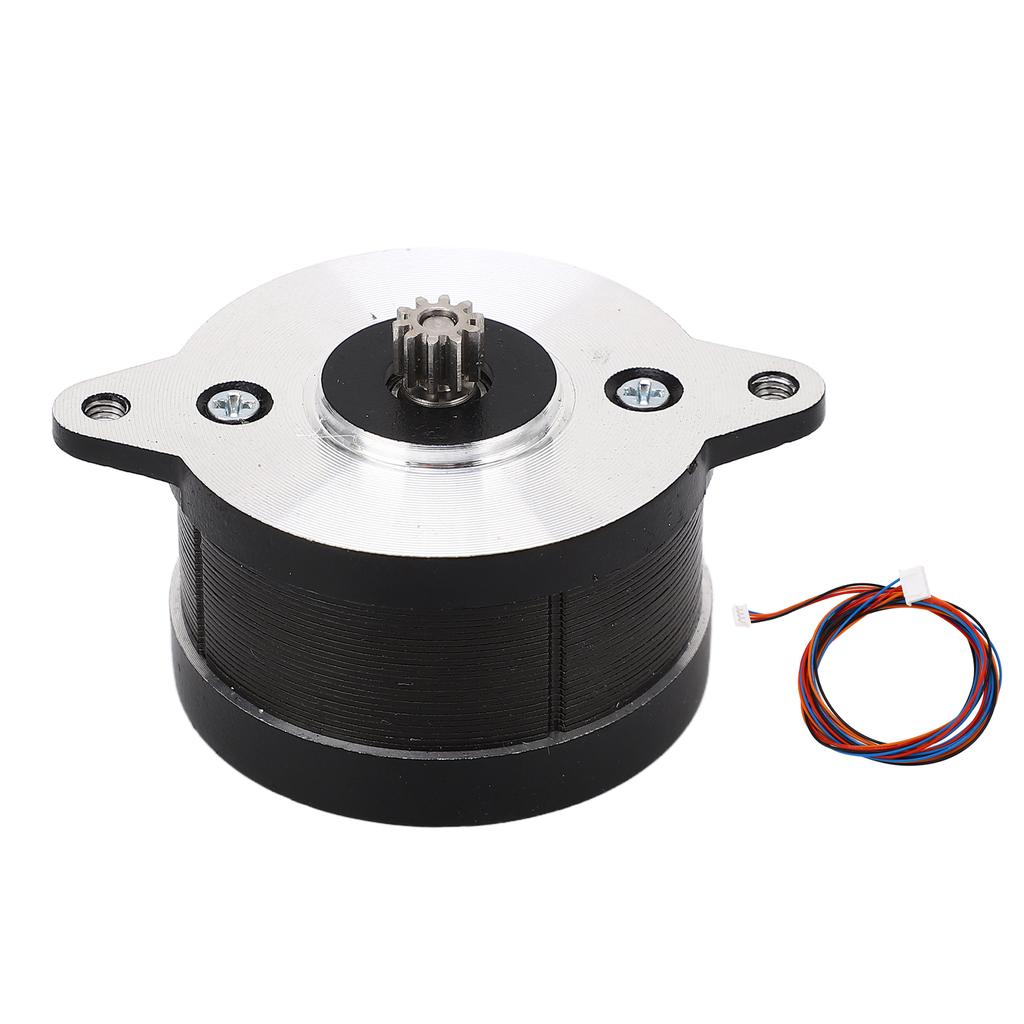

1 x Stepper Motor1 x Cable (1 Meter)
VOLTAGE CURRENT: 36mm round stepper motor, 1.8 degree step angle, the rated voltage is DC2.1V per phase, current is DC1.0A per phase.
HIGH TORSION: Holding torsion up to 100mN?m MIN, low loss stator with good thermal control capability, with good performance.
STAINLESS STEEL: The stepper motor is made of stainless steel, rustproof and corrosion resistant, and can withstand harsh environments.
FINE WINDING: With 130 celsius high temperature winding design, ensuring that the motor does not lose step during temperature rise.
APPLICATION: For 3D printers or extruders, for Reprap Ender 3, for Ender 3 Pro, for Ender 3 V2, for Ender 5, for CR 10 and other model.
