2.Multiple Protection Functions:Includes overcharge, over-discharge, overcurrent, and short-circuit protection to help maintain battery safety.
1.Integrated Voltage Detection Circuit:Features a built-in voltage detection circuit designed to help protection the battery by responding promptly to abnormal voltage conditions.
3.Stable Performance & Durable Construction:Utilizes reliable electronic components to support consistent charge and discharge performance with extended service life.
5.Compatible with Various Applications:Suitable for massager battery packs, LED backup power, 12V electronics, solar street light batteries, monitoring systems, and similar devices.
4.Wide Operating Temperature & Low Power Consumption:Operates within a temperature range of -40°C to 50°C with low self-consumption during normal use.
Specifications:
Item Type: Lithium Battery Protection Board
Overcharge Voltage Range: 4.25-4.35V±0.05V
Over-Discharge Voltage Range: 2.3-3.0V±0.05V
Working Current: 0-25A
Upper Limit Instantaneous Current: 35-40A
Balance Current: 45 mA
Charging Voltage: 12.6V-13V
Working Temperature: -40~+50°C
Storage Temperature: -40~+80 °C
Quiescent Current: <30uA

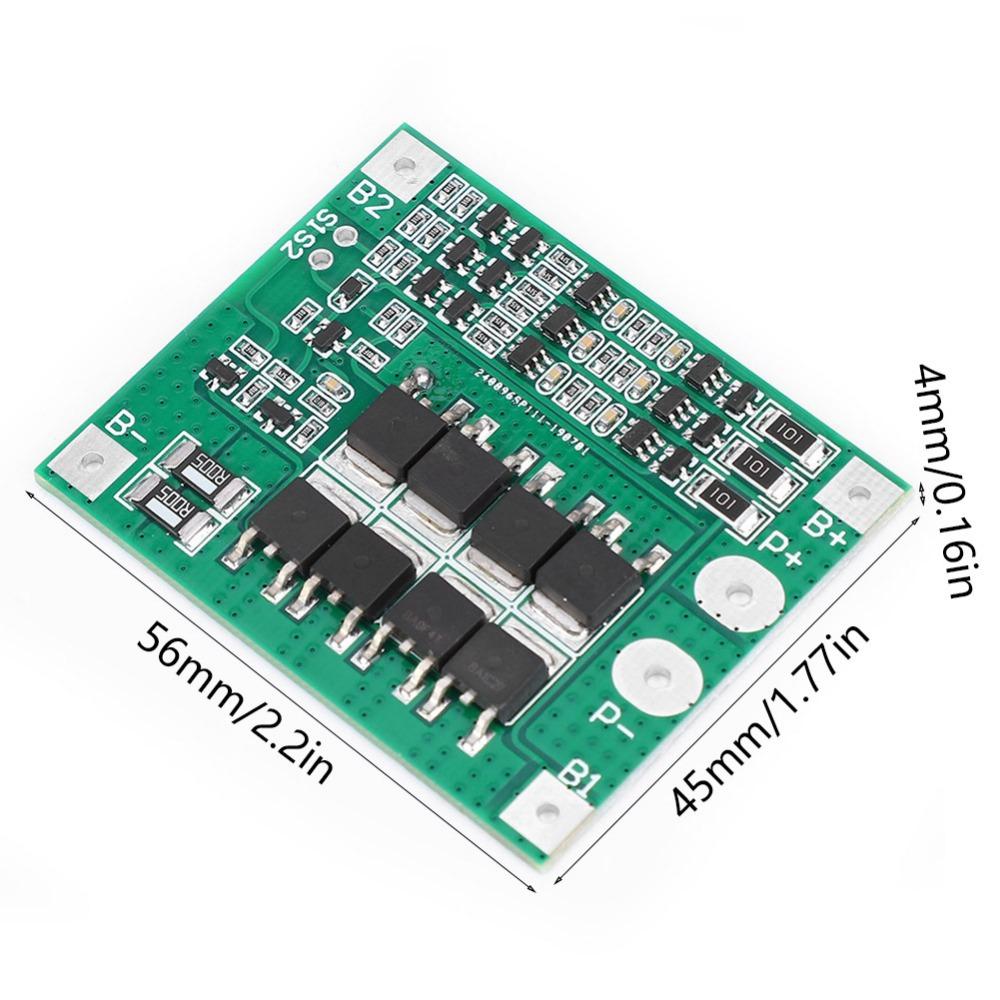

Size: 56 x 45 x 4mm / 2.2 x 1.8 x 0.2in
Circuit Board Color: Green
Life: >30,000 hours
Internal Resistance: <100 milliohm
Short Circuit Protection: Yes, delay self-recovery
Test Point Description: S1 S2 short circuit, P + P- will output voltage, indicating that all MOS protection is normal, plus a normally open temperature detection can extend the temperature protection.
Applicable products: massager battery pack, LED light backup power supply, 12V electronic products, solar street light battery pack, monitoring backup power supply, and other products
Package List:
1 x Lithium Battery Protection Board
Note:
1. This protective board cannot be used for iron ion polymer batteries, hand drill battery packs, electric fishing machine battery packs, electric bike battery packs. Two pieces can be connected in series with 24V, and a 1W fisheye LED light can be used
2. For discharge products above 3A, the battery discharge rate should be more than 3C.
Discharge rate calculation formula: 1C rate battery, 2000 capacity is equal to 2AHx1=2A working current; 3C rate battery, 2000 capacity is equal to 2AHx13=6A working current. If battery heats during use, it means the battery discharge rate is not applicable, this situation can not be used for a long time, or the battery will be damaged quickly.
3. In strict accordance with the wiring 0V (B-), 3.7V (B1), 7.4V (B2), 11.1V (B+), do not intentionally short circuit!
4.After connecting the cable, it needs to be charged first before there will be output.
5. When connecting 3 sets of batteries in series, please ensure that the voltage of each set of batteries is the same. If they are different, please fill each set of batteries separately and then use them in series. During the discharge test, the battery with the fastest voltage drop is the poor battery.
6.Tips: Do not mix good battery and poor battery to use! The closer the capacity/internal resistance of the batteries are, the better! (The use effect of 2 good batteries and 1 poor battery = the use effect of 3 poor batteries).
