Features:
* The working voltage of the receiver is DC 3.6V-24V, which is suitable for a variety of DC motors. Remote control water heater / Remote control LED / Remote control Lamp / Remote control water pump and other remote control device;
* Low standby power (4mA), no need to worry about excessive power consumption.
* Stable RF signal: up to 100m in open areas, extending the receiver antenna can obtain farther and more stable signals.
* The mini receiver and remote control are both RF 433mhz type, and the remote control can also be used with other RF receivers
* The method of use is simple: simple wiring and simple data matching.
* Multiple matching methods :many remotes can control same receiver at the same time(at most 20pcs remotes);
* Super mini size, it can fit directly into the interior of various devices.
Mini receiver specifications:
Frequency: 433MHz
Max current : 10Amp
Working voltage: DC 3.6-24V
Function option: Momentary mode/Toggle mode/ Latched mode

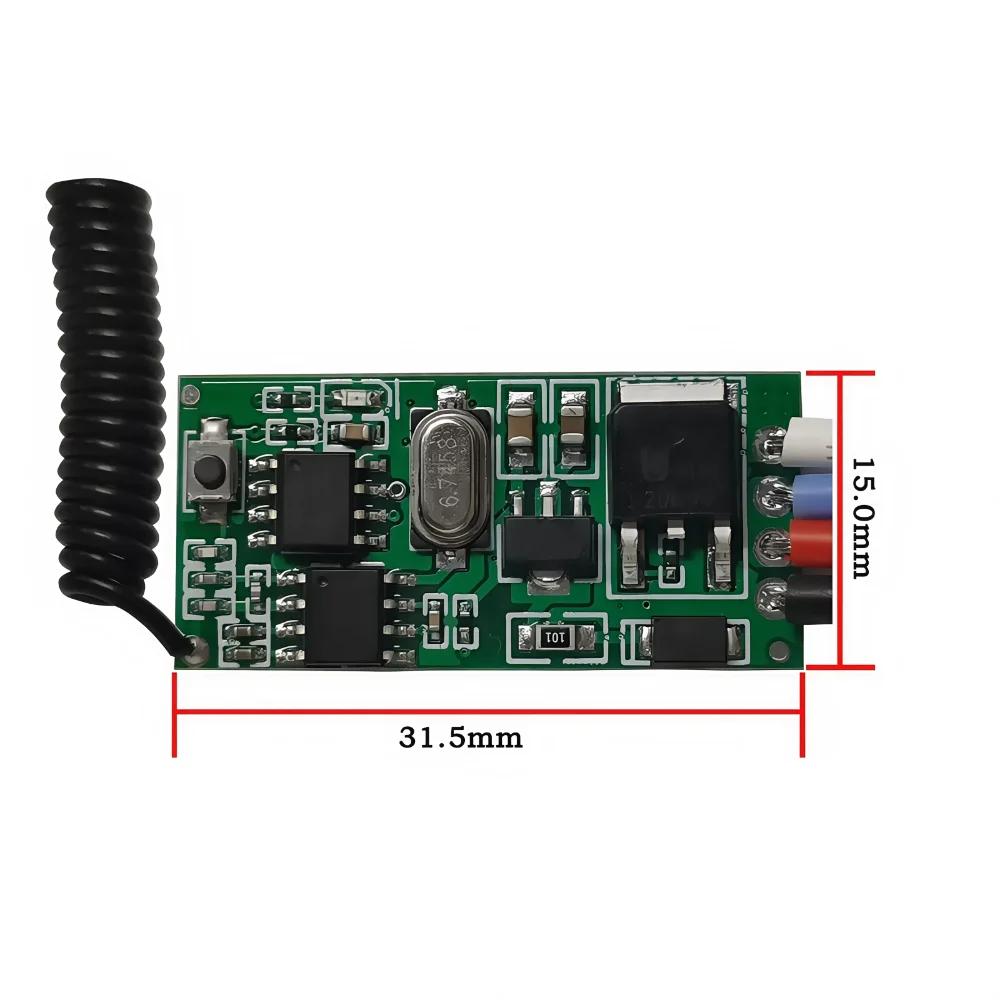

Size: 34*15mm
Modulation method: ASK
Number of compatible remote controls: up to 24 remote controls
Matching Mode: Intelligent Learning code
Remote controller parameters:
RF frequency : 433MHz
Control Distance : 100 meters in open space
Material : Plastic
Support encoding : 1527 Leaning code
Battery : CR2032 (included)
Size:58*28*10mm
Package Included:
1*Mini Remote Control
Operating Mode
Match signal 1 Momentary mode :
Press the learn button once time,
Performance :
Press and hold on one button -> the electrical equipment will turn ON;
Release the button -> the electrical equipment will turn OFF;
Match signal 2 Toggle mode :
Press the learn button Twice time,
Performance :
Press one button -> the electrical equipment will turn ON;
Press the button again-> the electrical equipment will turn OFF;
Match signal 3 Latched mode :
Press the learn button Three times,
Performance :
Press A button -> the electrical equipment will turn ON;
Press B button -> the electrical equipment will turn OFF;
Set Up
Note: Before configuring the signal, Press the learning button 8 times , to reset the receiver.
Setting mode 1 Momentary mode :
STEP 1

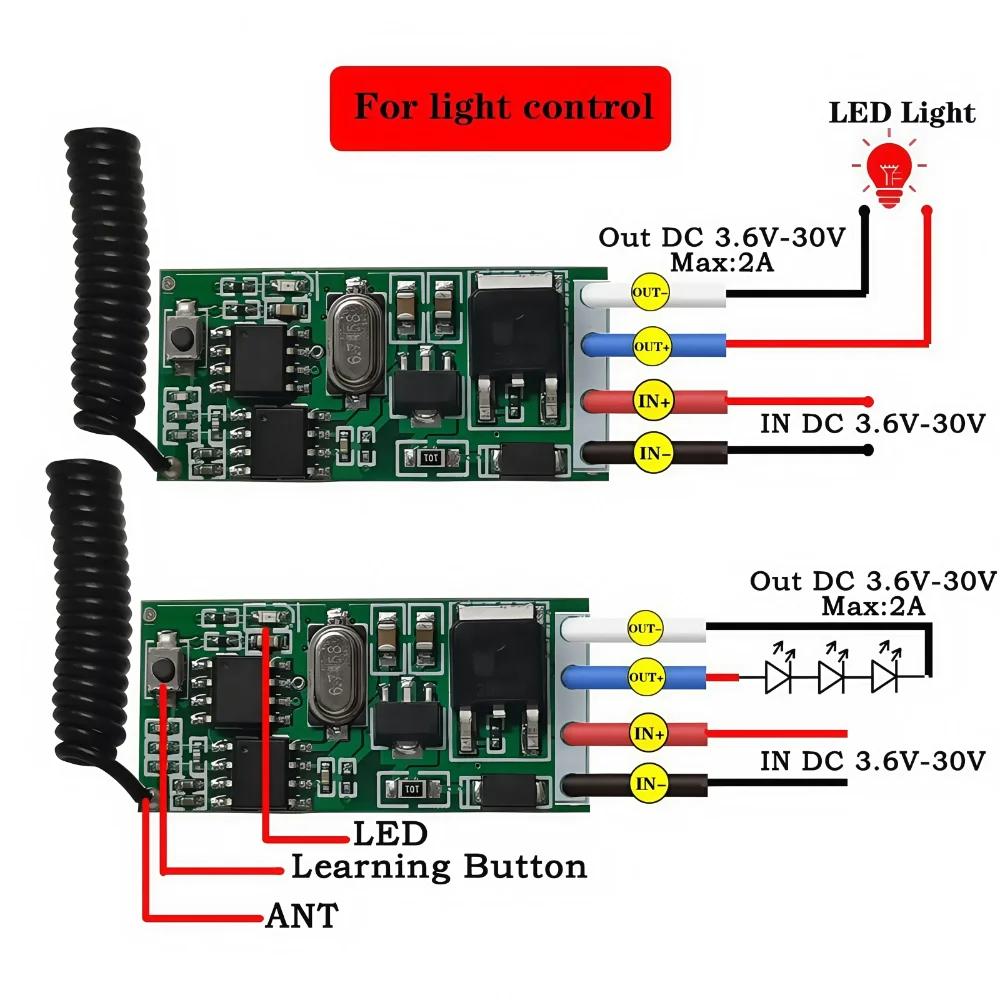

Press the learning button on the Receiver Once .
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control , the LED on the receiver board will flash on;
Setting mode 2 Toggle mode:
STEP 1
Press the learning button on the Receiver Twice.
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control , the LED on the receiver board will flash on;
Setting mode 3 Latched mode:
STEP 1
Press the learning button on the Receiver Three times.
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press A button on the Remote Control , the LED on the receiver board will flash on;
STEP 3
Press B button on the Remote Control , the LED on the receiver board will flash on;
