75mm Cylinder Top End Piston Kit For Aprilia Atlantic Sport City SR Max 300 4T

Cylinder Piston Gasket Top End Rebuild Kit For Piaggio Vespa GTS MP3 Beverly GTV – 876457

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). The cylinder is made of iron for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment). The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 75 mm x 63 mm stroke, 16 mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Cast Iron Engine: 4-stroke Displacement: 278.3cc Bore Type: Standard Bore Bore diameter: 75 mm Stroke: 63 mm Pin diameter: 16 mm Pin length: 45 mm Compression Ratio: 10.5 ± 11.5:1

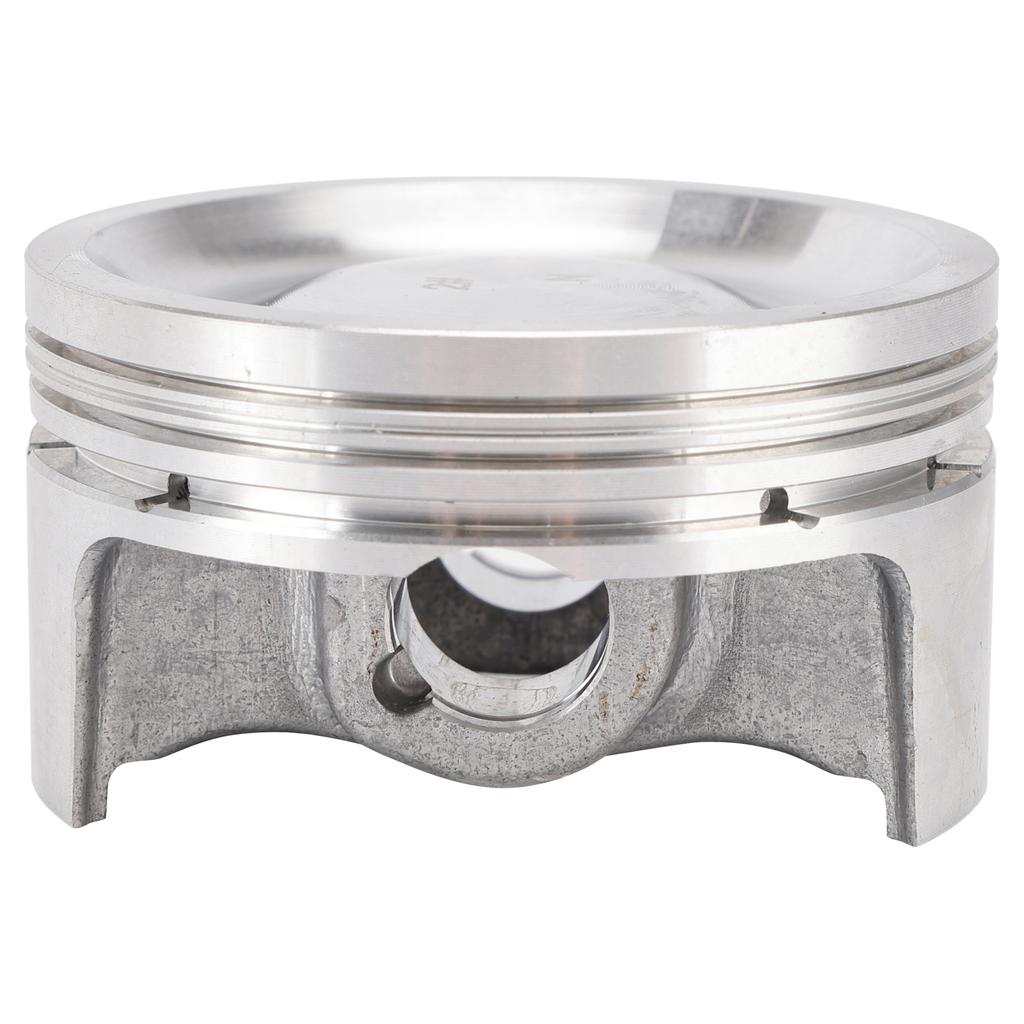

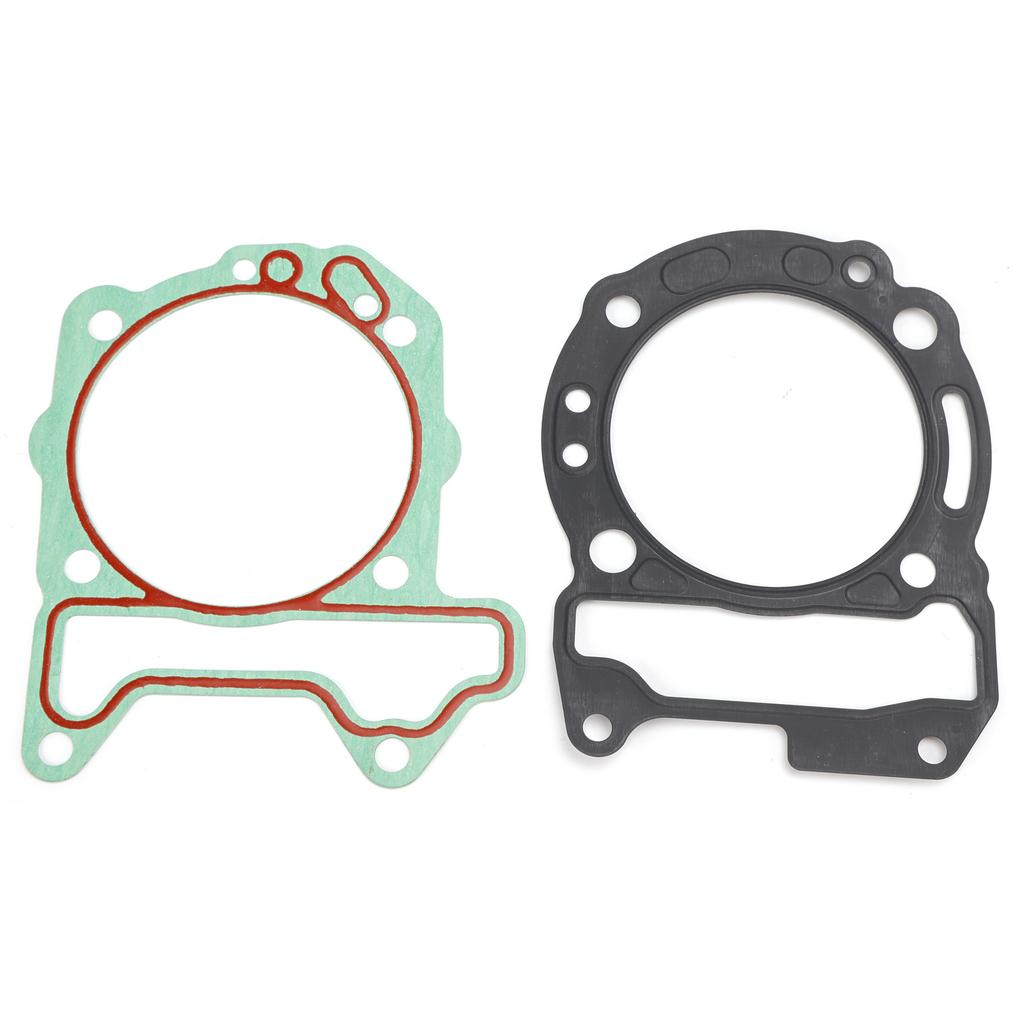

Replacement Part Number: Cylinder Kit: 876457 Cylinder Head Gasket: 1A014002 Cylinder Base Gasket: 875113 Piston: 8764580001 Pin, Piston: 875005 Piston Ring Set (Std): B015159, B015160, B015161 Circlips, piston (2): 875096

(Always compare part numbers to your parts schematics and cross reference appropriately.) (This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year: Fit for Aprilia Atlantic 300 ie 4V 10-12 [ZD4SPG00] Fit for Aprilia SR Max 300 ie 4V 11-14 [ZAPM3560/ ZD4M3560] Fit for Aprilia Scarabeo 300 ie 4V Light 09-10 E3 [ZD4VRG00] Fit for Aprilia Sport City Cube 250 ie 4V 08-12 E3 [ZD4VBH/ ZD4VBC] Fit for Aprilia Sport City Cube 300 ie 4V 08-12 E3 [ZD4VBL] Fit for Aprilia Sport City Street 300 ie 4V 12- E3 [ZD4VBR00] Fit for Derbi Rambla 300 ie 4V 10-11 E3 [VTHRA1C] Fit for Gilera Nexus 300 ie 4V 08- [ZAPM35600] Fit for Gilera Nexus 300 ie 4V 09-11 [ZAPM35600] Fit for Peugeot Geopolis 300 ie 4V LC [Piaggio engine] [N2AGAA] 10-16 E3 Fit for Piaggio BV 300 ie 4V Tourer 09-11 (NAFTA) [ZAPM289L] Fit for Piaggio Beverly 300 ie 4V ABS 16-20 E4 [ZAPMA2100] Fit for Piaggio Beverly 300 ie 4V RST 10-16 [ZAPM69200] Fit for Piaggio Beverly 300 ie 4V Tourer 09-11 [ZAPM28A00] Fit for Piaggio Carnaby 300 ie 4V Cruiser 09-12 [ZAPM60400] Fit for Piaggio MP3 300 ie 4V Hybrid ERL 10-13 [ZAPM65200] Fit for Piaggio MP3 300 ie 4V LT 09-14 [ZAPM64102] Fit for Piaggio MP3 300 ie 4V LT Business 14-15 [ZAPM86200/ 86202] Fit for Piaggio MP3 300 ie 4V LT Business 16-18 [ZAPTA1100/ ZAPTA19L] Fit for Piaggio MP3 300 ie 4V LT Business ABS 16-18 [ZAPTA1100/ ZAPTA19L] Fit for Piaggio MP3 300 ie 4V LT Enjoy 16- [ZAPM86200/ 86202] Fit for Piaggio MP3 300 ie 4V LT Hybrid 10-11 [ZAPM72100] Fit for Piaggio MP3 300 ie 4V LT Sport 09-14 [ZAPM64102] Fit for Piaggio MP3 300 ie 4V LT Sport 16-18 [ZAPTA1100/ ZAPTA19L] Fit for Piaggio MP3 300 ie 4V LT Sport ABS 16-18 [ZAPTA1100/ ZAPTA19L] Fit for Piaggio MP3 300 ie 4V LT Touring 11-13 [ZAPM64102] Fit for Piaggio MP3 300 ie 4V MIC 11- [ZAPM63301] Fit for Piaggio MP3 300 ie 4V Touring 11-12 [ZAPM63301] Fit for Vespa Modern-GTS 300 ie 4V 09-13 E3 [ZAPM459L] Fit for Vespa Modern-GTS 300 ie 4V 12-16 ABS / no ABS E3 (Europe) [ZAPM45200/ ZAPM45202] Fit for Vespa Modern-GTS 300 ie 4V 14-16 ABS E3 (Asia) [ZAPM45200] Fit for Vespa Modern-GTS 300 ie 4V 14-18 ABS E3-E4 [ZAPM459L/ ZAPMA39L] Fit for Vespa Modern-GTS 300 ie 4V 16-18 ABS E4 (Europe) [ZAPMA33000] Fit for Vespa Modern-GTS 300 ie 4V 17- ABS E4 (Asia) [ZAPMA33001] Fit for Vespa Modern-GTS 300 ie Super 4V 08-16 ABS / no ABS E3 [ZAPM45200/ 202] Fit for Vespa Modern-GTS 300 ie Super 4V 09-13 E3 [ZAPM459L] Fit for Vespa Modern-GTS 300 ie Super 4V 14-16 ABS E3 (Asia) [ZAPM45200] Fit for Vespa Modern-GTS 300 ie Super 4V 14-18 ABS E3-E4 [ZAPM459L / ZAPMA39L] Fit for Vespa Modern-GTS 300 ie Super 4V 16-18 ABS E4 (Europe) [ZAPMA3300] Fit for Vespa Modern-GTS 300 ie Super 4V 17-18 ABS E3 (Asia) [ZAPM4520/ RP8M45710] Fit for Vespa Modern-GTS 300 ie Super Sport 4V E3 10-13 [ZAPM45200] Fit for Vespa Modern-GTS 300 ie Super Tech 4V 17-22 ABS E4 (Asia) [RP8M4572/ RPBM45842/ RP8M4585] Fit for Vespa Modern-GTS 300 ie Super Tech 4V 17-22 ABS E4 (Asia) [RP8M4581/ RP8M4571] Fit for Vespa Modern-GTS 300 ie Super Tech 4V 17-22 ABS E4 (Asia) [ZAPMA3301] Fit for Vespa Modern-GTS 300 ie Touring 4V E3 11-13 [ZAPM45200] Fit for Vespa Modern-GTV 300 ie 4V E3 09-10 [ZAPM459L] Fit for Vespa Modern-GTV 300 ie 4V E3 10-13 [ZAPM45201] Fit for Vespa Modern-GTV 300 ie Sei Giorni 4V ABS E4 17-18 (Asia) [ZAPMA3302/ ZAPM4521] Fit for Vespa Modern-GTV 300 ie Sei Giorni 4V ABS E4 17-18 (Europe) [ZAPMA3302] Fit for Vespa Modern-GTV 300 ie Sei Giorni 4V ADS E4 17-16 [ZAPM459L]] Fit for Vespa Modern-GTV 300 ie Touring 4V E3 10-16 [ZAPM459L]] Fit for Vespa Modern-GTV 300 ie Vie Della Moda 4V E3 12- [ZAPM45201]]

Aprilia Bikes Can Be Registered A Different Year To When They Where Manufactured, This Can Make It Hard To Get The Correct Parts For Your Bike. Please Check Your Chassis Number To Confirm This Will Fit Your Bike (This Should Start ZD4 In Most Cases)

(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

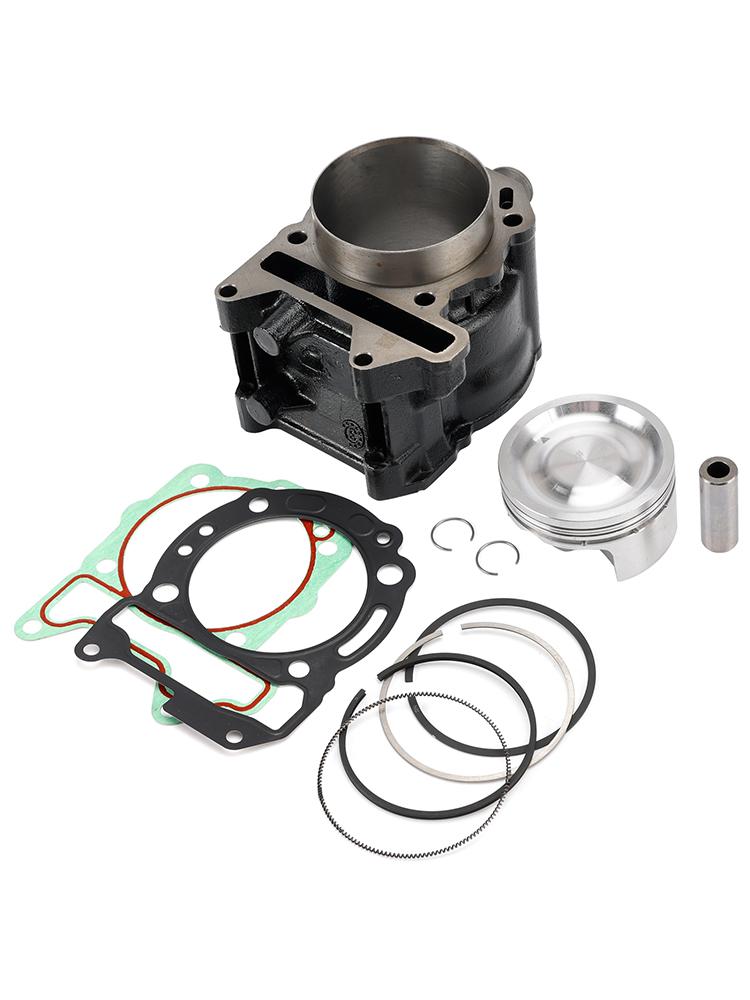

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x 16mm Wristpin 1x Circlip(2) 1x Cylinder Head Gasket 1x Cylinder Base Gasket

(Comes exactly as pictured.)

Note: Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
