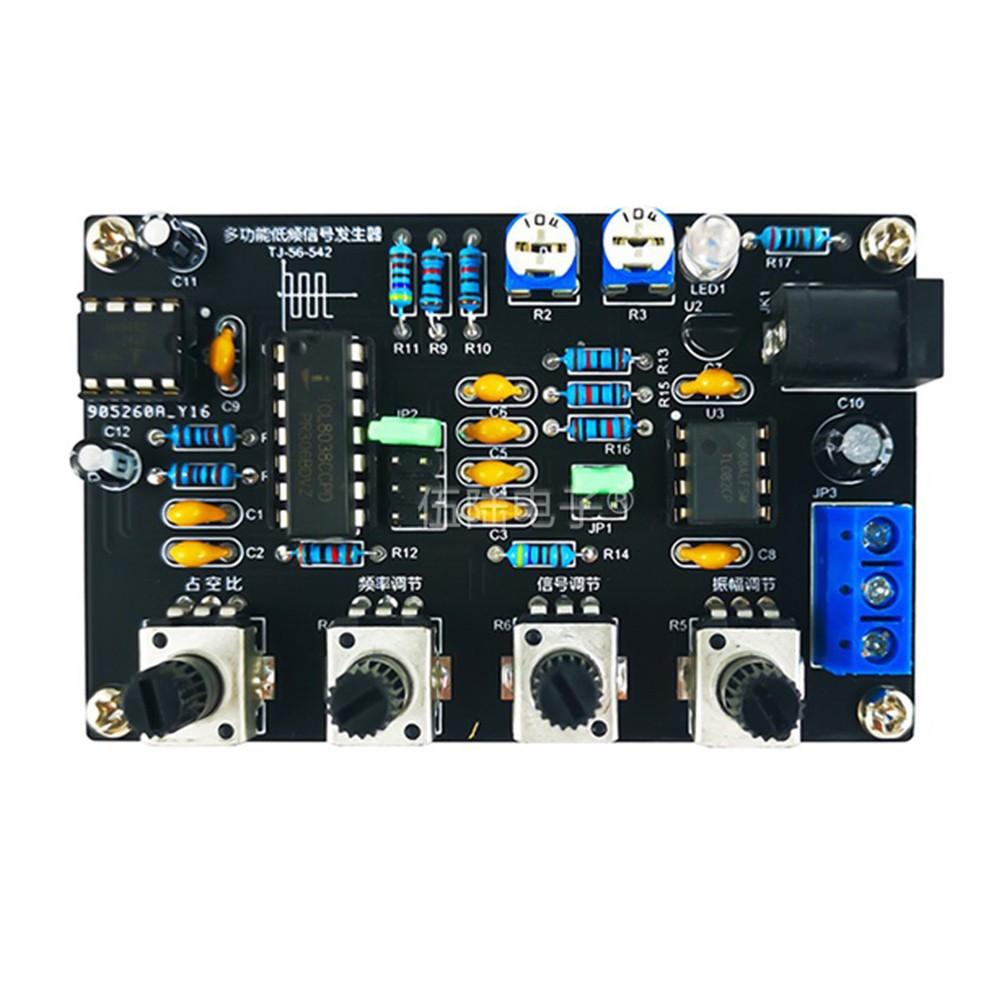

Low Frequency Signal Generator Kit For ICL8038 Adjustable from 5Hz To 400kHz

Features: * Adopt ICL8038 and high- operational , with higher for . * Can output sine/triangle/square/forward and reverse for sawtooth waveforms. * for Frequency range: 5Hz~400kHz; Duty for cycle range: for 2~95% (adjustable) * Support dual power , no blocking capacitor, for ensure high and low for Frequency signal distortion. * Adjustable for Frequency and amplitude. * for Frequency adjustment has coarse and fine adjustment functions. * All are through-hole components, easy to install.

Specifications: Product name: Signal generator kit Material: FR4+ for acrylic Color: As shown in the picture Size: PCB board size: 81*51mm Supply voltage: 12V~15V

for Frequency range: 5Hz~400KHz (adjustable) Duty for cycle range: for 2~95% (adjustable) Low distortion sine wave: 1% Low temperature for drift: 50ppm/°C Output triangle wave linearity: 0.1% DC bias range: -7.5V~7.5V Output amplitude range: 0.1V~11VPP (working voltage 12V)

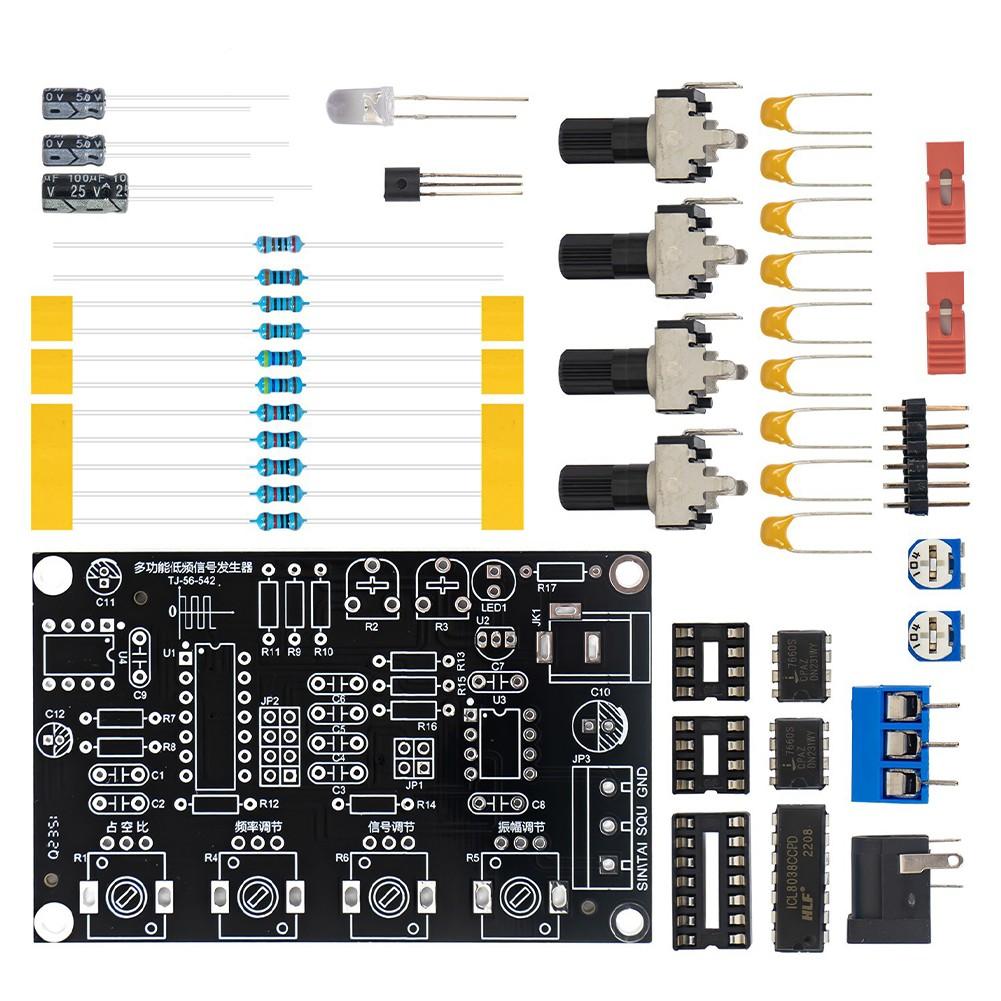

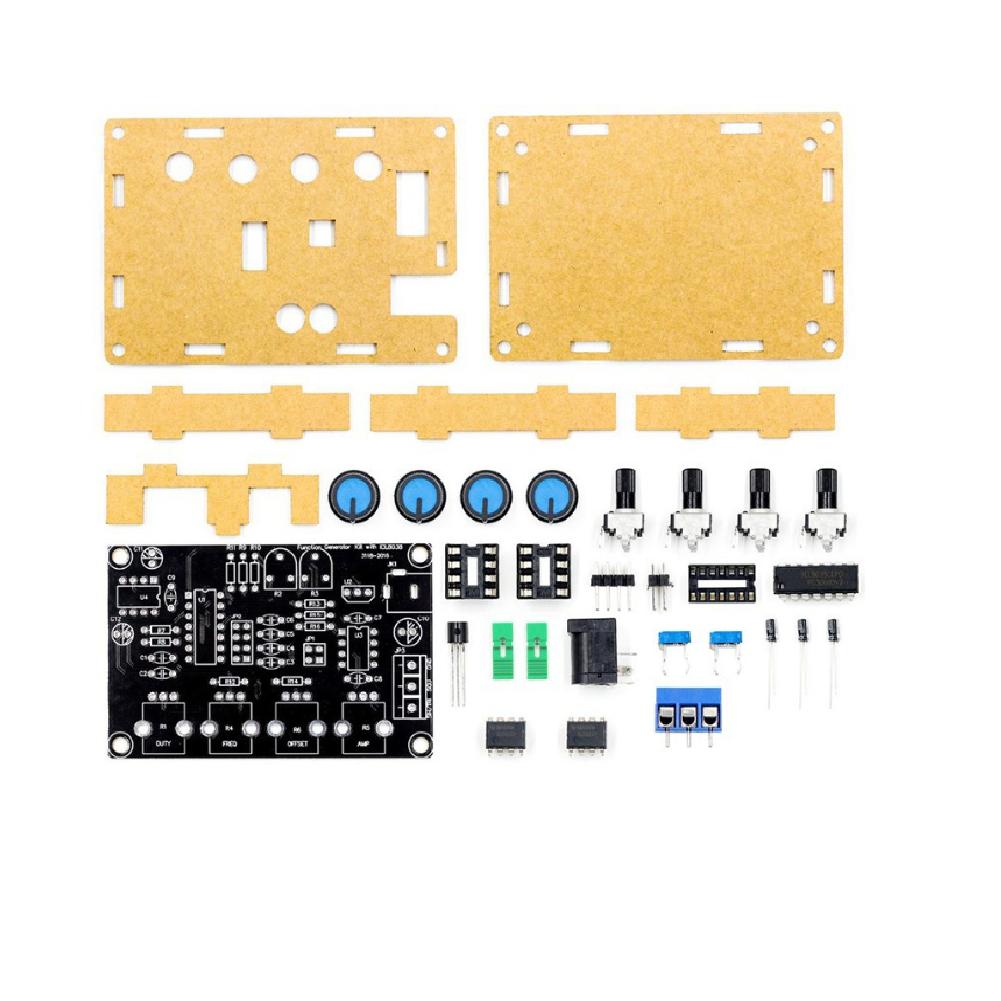

Package Content: 1*Signal generator kit or 1*Signal generator kit (with for acrylic shell)

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

for 2. Please allow slight manual measurement deviation for the data.
